Запчасти Case IH 2250 (E-08) - MATERIAL BUCKET Invalid section

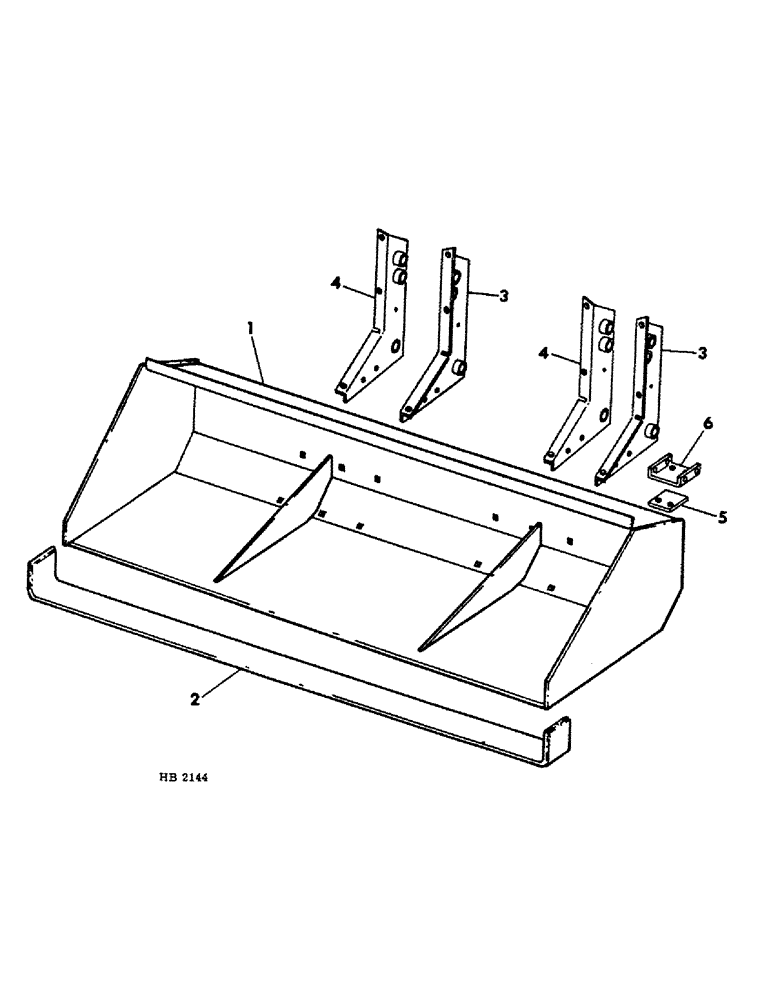

Схема запчастей Case IH 2250 - (E-08) - MATERIAL BUCKET Invalid section

Артикул

Название

Примечание

Количество

1

BUCKET, 65" material (for service order on machine order form)

1шт.

1

BUCKET, 84" material (for service order on machine order form)

1шт.

2

851917C1

BLADE

65" bucket cutting (welded)

1шт.

2

851806C1

BLADE

84" bucket cutting (welded)

1шт.

3

851918C1

SUPPORT

ASSY, bucket hinge LH outer and RH inner

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

4

851919C1

SUPPORT

ASSY, bucket hinge LH inner and RH outer

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

5

851842C1

BAR

cylinder stop

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-HD

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

851922C1

CHANNEL

bucket stop

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-HD

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

Выбрано товаров: 18
