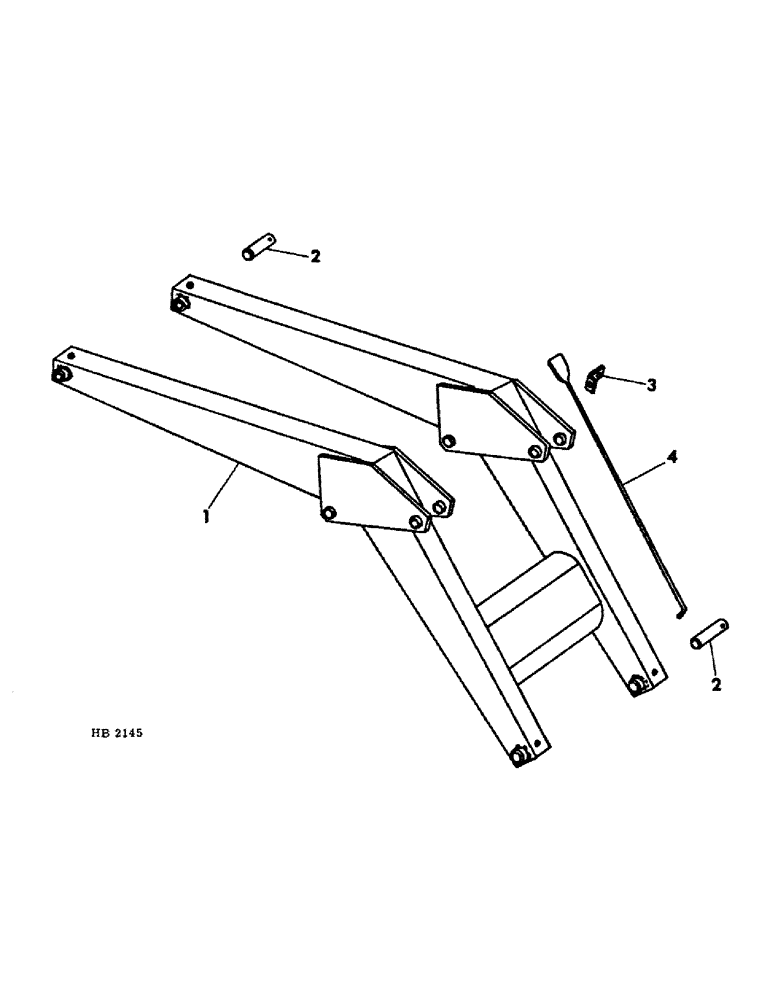

Запчасти Case IH 2250 (E-06) - BOOM AND BUCKET INDICATOR Invalid section

1

851882C1

BOOM

ASSY, loader

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 straight drive lub

4шт.

2

851771C1

PIN

bucket and boom pivot

4шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 headed dld

4шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

4шт.

3

851704C1

ANGLE

indicator support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

851886C1

ROD

bucket indicator

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.
