Запчасти Case IH 2250 (E-05) - FRAME AND BRACKETS Invalid section

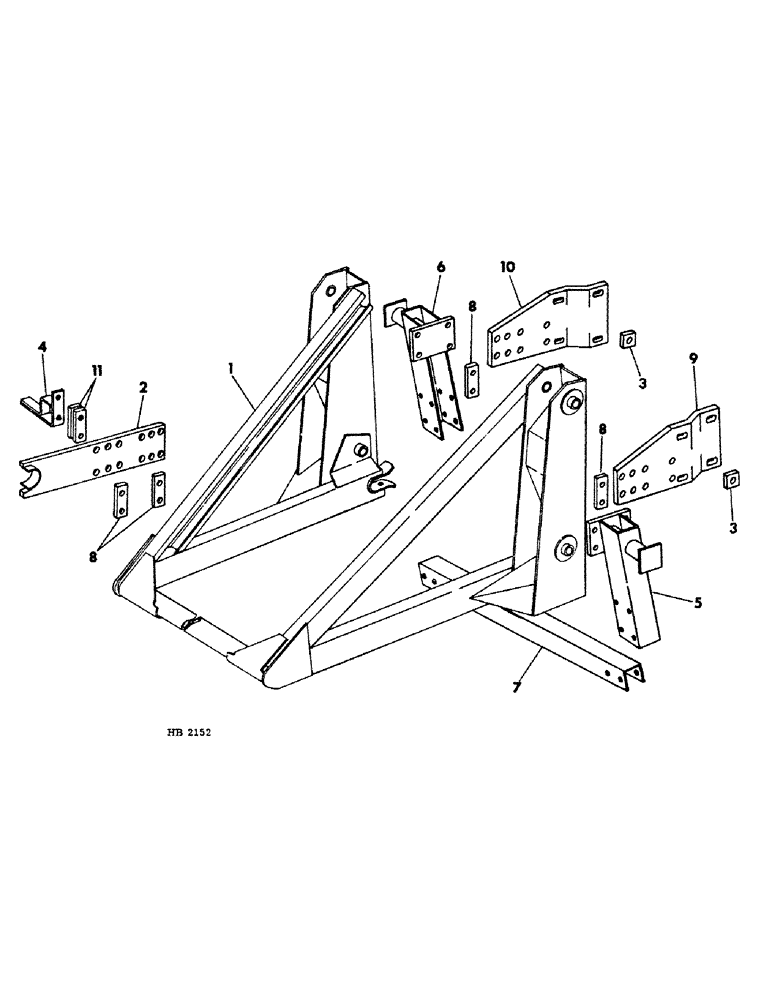

Схема запчастей Case IH 2250 - (E-05) - FRAME AND BRACKETS Invalid section

Артикул

Название

Примечание

Количество

1

851910C1

FRAME

ASSY, sub

1шт.

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 headed dld

2шт.

591107R1

COTTER PIN

Q.A. Cotter

2шт.

2

851988C1

BRACKET

ASSY, sub frame mounting front

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex-HD

8шт.

3

851898C1

BAR

bracket support rear spacer

8шт.

4

851990C1

GUIDE

ASSY, sub frame

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 hex-HD

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

851981C1

BRACKET

ASSY, sub frame mounting RR, LH

1шт.

6

851982C1

BRACKET

ASSY, sub frame mounting RR, RH

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 hex-HD

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

8шт.

7

851987C1

CHANNEL

rear mounting bracket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

8шт.

8

851828C1

BAR

3/8" thick bracket mounting spacer

6шт.

9

851993C1

SUPPORT

sub frame rear bracket LH

1шт.

10

851994C1

SUPPORT

sub frame rear bracket RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-HD

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

11

851832C1

BAR

1/2" thick bracket support mounting

4шт.

Выбрано товаров: 26
