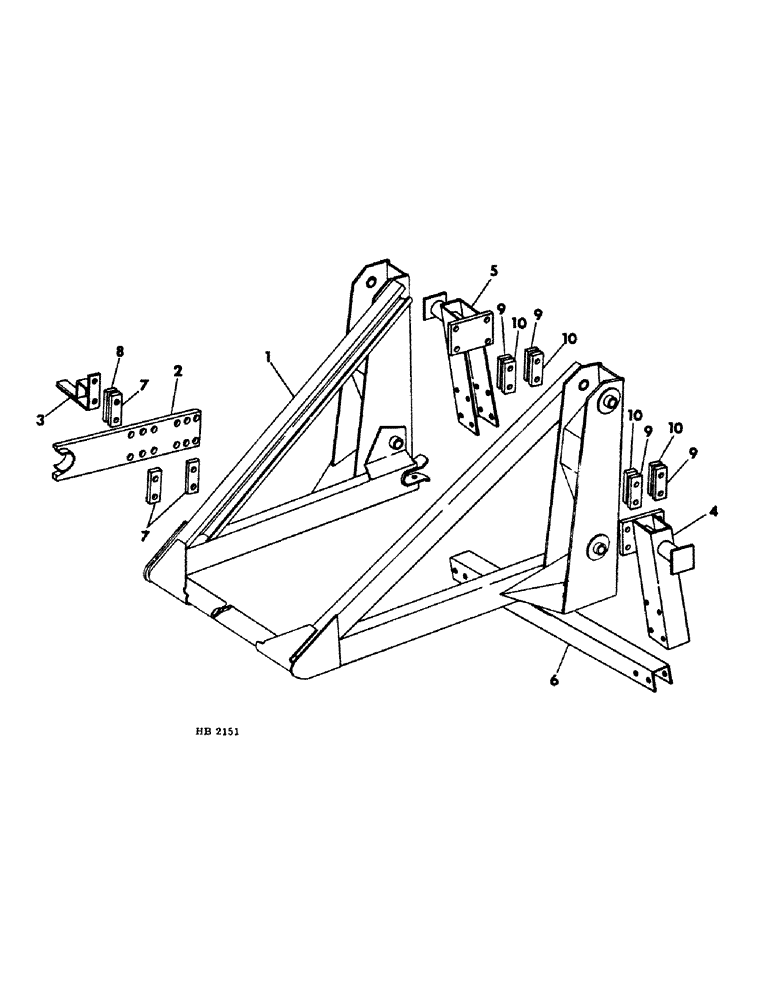

Запчасти Case IH 2250 (E-04) - FRAME AND BRACKETS (00) - COMPLETE MACHINE

1

851910C1

FRAME

ASSY, sub

1шт.

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 headed dld

2шт.

591107R1

COTTER PIN

Q.A. cotter

2шт.

2

851988C1

BRACKET

ASSY, sub frame mounting front

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex-HD

8шт.

3

851990C1

GUIDE

ASSY, sub frame

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 hes-HD

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

851981C1

BRACKET

ASSY, sub frame mounting RR, LH

1шт.

5

851982C1

BRACKET

ASSY, sub frame mounting RR, RH

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex-HD

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

8шт.

6

851987C1

CHANNEL

rear mounting bracket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

8шт.

7

851828C1

BAR

3/8" thick front bracket mounting spacer

6шт.

8

851832C1

BAR

1/2" thick front bracket mounting spacer

2шт.

9

851828C1

BAR

3/8" thick rear bracket mounting spacer

4шт.

10

851832C1

BAR

1/2" thick rear bracket mounting spacer

4шт.
