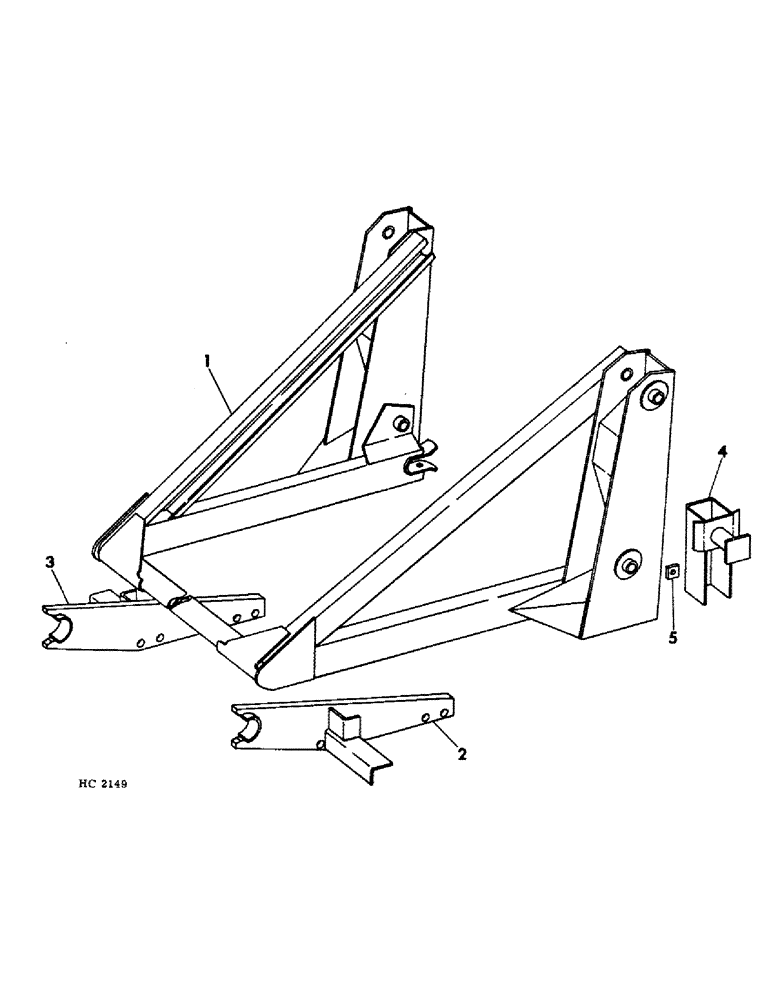

Запчасти Case IH 2250 (E-02) - FRAME AND BRACKETS (00) - COMPLETE MACHINE

1

851910C1

FRAME

ASSY, sub

1шт.

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 headed dld

2шт.

591107R1

COTTER PIN

Q.A. cotter

2шт.

2

851888C1

BRACKET

BRKT ASSY, sub frame mounting front LH

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-HD

2шт.

3

851889C1

BRACKET

BRKT ASSY, sub frame mounting front RH

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-HD

2шт.

4

851893C1

BRACKET

ASSY, sub frame mounting rear

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

5

851898C1

BAR

rear bracket mtg spacer

16шт.
