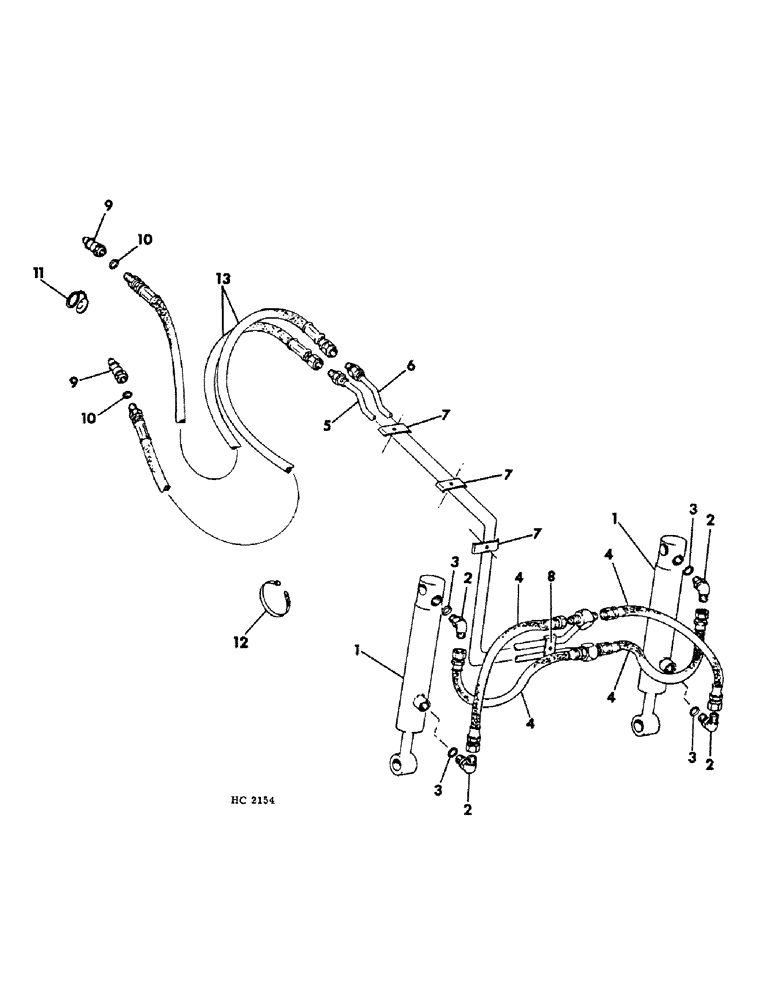

Запчасти Case IH 2250 (E-18) - BUCKET HYDRAULICS, TRACTOR VALVE TO BUCKET CYLINDERS Invalid section
№
Артикул
Название
Примечание
Количество
1
851568C91
CYLINDER
ASSY, bucket control (for service parts refer to bucket control hydraulic cylinder)
2шт.
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, 1/8-27
4шт.
2
9410977
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
3/4-16 hyd 37 deg. flared tube adj str thrd 90 deg. w/nut and back-up washer
4шт.
4
851788C1
HOSE
bucket cylinder
4шт.
5
851930C1
HYD TUBE
TUBE ASSY, bucket dump
1шт.
6
851929C1
HYD TUBE
TUBE ASSY, roll-back
1шт.
7
851448C1
CLAMP
hydraulic tube
3шт.
851942C1
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"
SCREW, 5/16-18 x 1-1/4 hex washer-HD self-tapping
3шт.
619856R1
WASHER
.406 x 1.000 x .056
3шт.
8
851729C1
HOSE CLAMP
CLAMP, hydraulic tube
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
9
544787R91
COUPLING, BREAK AWAY
COUPLER ASSY, hose male (for use on International 66 series tractors only)
2шт.
9
394149R1
COUPLER ASSY, hose male (not for use on International 66 series tractors)
2шт.
10
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
hydraulic coupler
2шт.
11
372220R1
ROD
CAP, dust
2шт.
12
816502C1
STRAP
hydraulic hose tie
1шт.
HOSE ASSY, 1/2 I.D. x 185" length recommended hydraulic (for service on I-454, I-464, I-474, I-574 and I-674 tractors using tractor valve for loader control order SAE 100 R2 wire braid hose w/3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed o-ring boss at opposite end)
1шт.
HOSE ASSY, 1/2 I.D. x 214" length recommended hydraulic (for service on F-460, F-504, F-544, I-544, F-560, F-656, I-656, I-664, I-666, F-706, I-706, F-756, I-756, I-766 and hydro 70 tractors using tractor valve for loader control order SAE 100 R2 two wire braid hose w/3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed o-ring boss at opposite end)
1шт.
Выбрано товаров: 20
