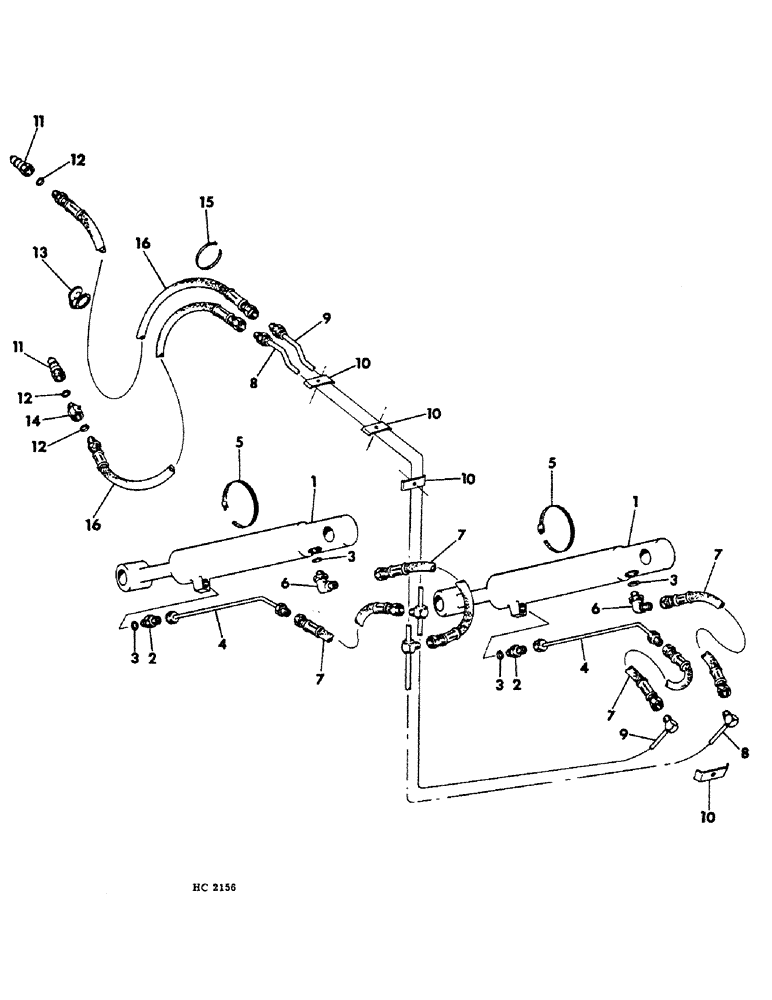

Запчасти Case IH 2250 (E-16) - BOOM HYDRAULICS, TRACTOR VALVE TO BOOM CYLINDERS Invalid section

1

851880C91

CYLINDER

ASSY, boom (for service parts refer to boom lift hydraulic cylinder)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27

4шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 hyd 37 deg. flared tube short swivel

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hydraulic cylinder

4шт.

4

851933C1

HYD TUBE,12.70 mm OD x 26.7, 6.5 mm L

TUBE ASSY, boom cylinder

2шт.

5

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, tube

2шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hyd 37 deg. flared tube adj str thrd 90 deg. w/nut and back-up washer

2шт.

7

851789C1

HOSE

boom cylinder

4шт.

8

851931C1

TUBE

ASSY, boom raise

1шт.

9

851932C1

TUBE

ASSY, boom lower

1шт.

10

851448C1

CLAMP

hydraulic tube

4шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW, 5/16-18 x 1-1/4 hex washer-HD self-tapping

4шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

11

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, hose male (for use on International 66 series tractors only)

2шт.

11

395149R1

QUICK MALE COUPLING

COUPLER ASSY, hose male (not for use on International 66 series tractors)

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupling

3шт.

13

372220R1

ROD

CAP, dust

2шт.

14

851594C91

CHECK VALVE

RESTRICTOR ASSY, flow

1шт.

15

816502C1

STRAP

hydraulic hose tie

1шт.

HOSE ASSY, 1/2 I.D. x 185" length recommended hydraulic (for service on I-454, I-464, I-474, I-574 and I-674 tractors using tractor valve for loader control order SAE 100 R2 wire braid hose w/3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed o-ring boss at opposite end)

1шт.

HOSE ASSY, 1/2 I.D. x 226" length recommended hydraulic (for service on F-460, F-504, F-544, I-544, F-560, F-656, I-656, I-664, I-666, F-706, I-706, F-756, I-756, I-766 and hydro 70 tractors using tractor valve for loader control order SAE 100 R2 two wire braid hose w/3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed o-ring boss at opposite end)

1шт.
