Запчасти Case IH 2250 (E-14) - 296247R1 TRACTOR TO LOADER VALVE HYD SYSTEM Invalid section

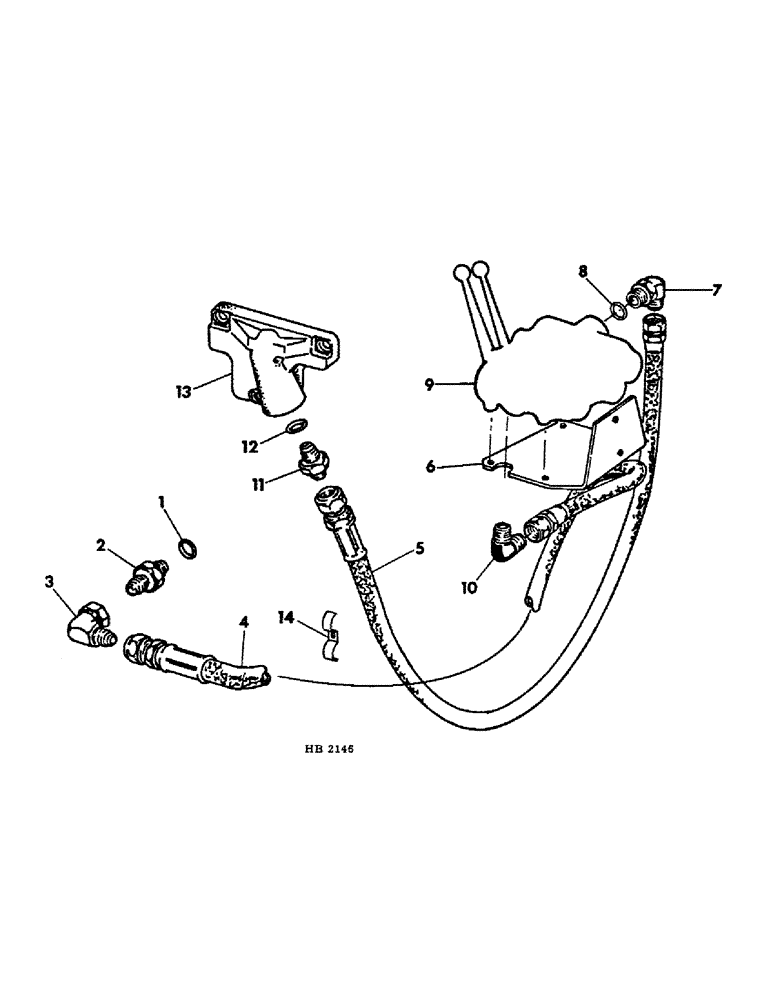

Схема запчастей Case IH 2250 - (E-14) - 296247R1 TRACTOR TO LOADER VALVE HYD SYSTEM Invalid section

Артикул

Название

Примечание

Количество

1

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

2

222648H1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 7/8-14 hyd 37 deg. flared

1шт.

3

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 hyd 37deg. flared tube 90 deg. swivel

1шт.

4

850738C91

HOSE

66" tractor to control valve return line

1шт.

5

851625C91

HOSE

58" tractor to control valve pressure line

1шт.

6

851621C1

SUPPORT

hyd control valve

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

.344 x 1.000 x .054 flat

2шт.

7

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd 37 deg. flared tube adj str thrd 90 deg. w/nut and back-up washer

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve inlet port elbow

1шт.

9

851629C91

VALVE

ASSY, hydraulic control (for service parts refer to hydraulic control valve)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 x 2-1/4 hex-HD

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

7/8-14 hyd 37deg. flared tube 90 deg.

1шт.

11

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

CONNECTOR, 7/8-14 hyd 37 deg. flared tube to 1-3/16-12 str thrd reducer

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

470603R4

MANIFOLD

PLATE, tractor valve bank cover

1шт.

14

379045R1

CLAMP

hyd hose dual

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4-20 x 1-3/4 hex-HD

1шт.

Выбрано товаров: 22
