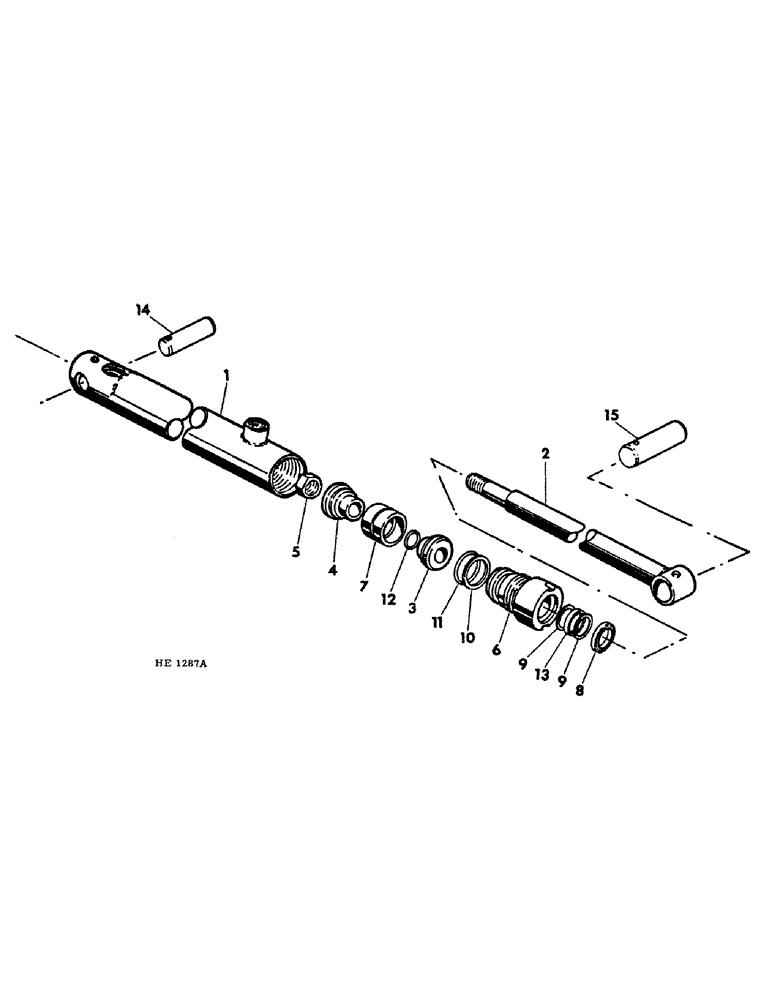

Запчасти Case IH 2250 (E-13) - BUCKET CONTROL HYDRAULIC CYLINDER, 2 X 18.38 D.A. Invalid section

851568C91

CYLINDER

ASSY, bucket control hyd (consists of all parts listed unless otherwise noted)

2шт.

1

850598C1

BODY ASSY, cylinder

1шт.

2

850599C1

ROD

ASSY, piston

1шт.

3

850579C1

PISTON

front half

1шт.

4

850580C1

PISTON

rear half

1шт.

5

811850C1

NUT

7/8-14 lock

1шт.

6

850600C1

END

cylinder

1шт.

7

SEAL, hyd cyl piston heavy duty (for service order 1-850601C91 kit)

1шт.

8

SEAL, piston rod dust (for service order 1-850601C91 kit)

1шт.

9

RING, piston rod o-ring back-up (for service order 1-850601C91 kit)

2шт.

10

RING, cyl end o-ring back-up (for service order 1-850601C91 kit)

1шт.

11

O-RING, 2" dia hyd cyl end (for service order 1-850601C91 kit)

1шт.

12

O-RING, 7/8" dia piston half front (for service order 1-850601C91 kit)

1шт.

13

SEAL, 1-1/8" dia quad (for service order 1-850601C91 kit)

1шт.

14

851444C1

PIN

bucket cyl to boom (not part of cylinder)

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 headed dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

15

851771C1

PIN

bucket cyl to bucket (not part of cylinder)

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 headed dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

850601C91

SEAL KIT

cylinder seal service consists of (1) o-ring (NSS), (1) o-ring (NSS), (1) ring (NSS), (2) ring (NSS), (1) seal (NSS), (1) seal (NSS), (1) seal (NSS)

1шт.
