Запчасти Case IH 2250 (E-12) - BOOM CONTROL HYDRAULIC CYLINDER, 2-1/2 X 28.20 D.A. Invalid section

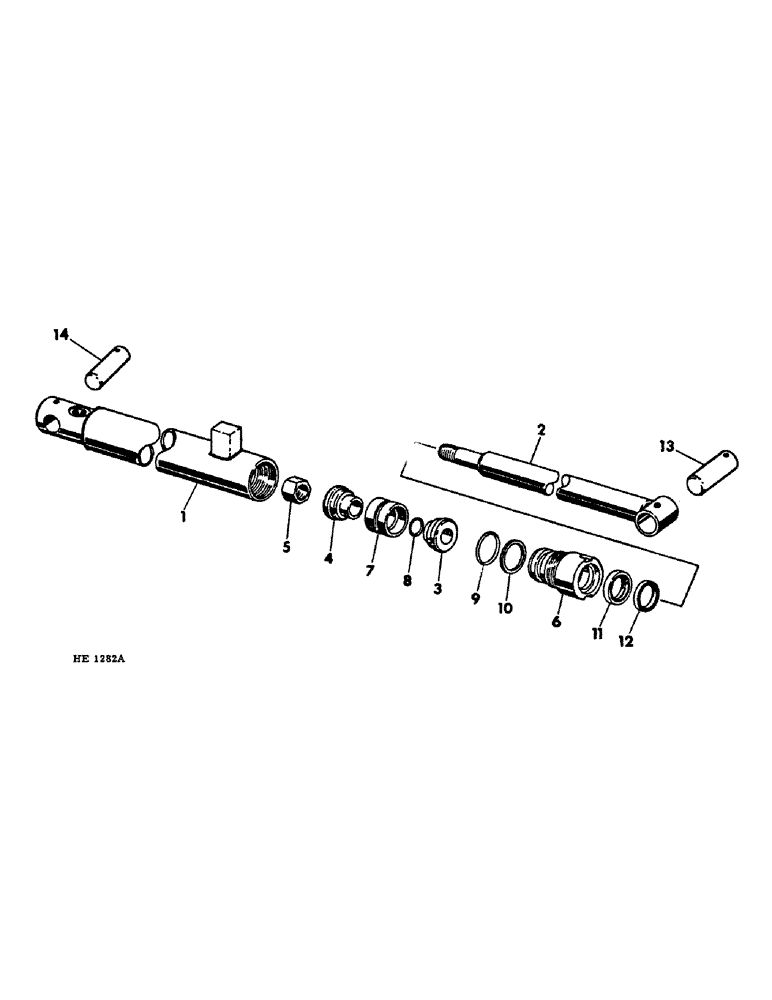

Схема запчастей Case IH 2250 - (E-12) - BOOM CONTROL HYDRAULIC CYLINDER, 2-1/2 X 28.20 D.A. Invalid section

Артикул

Название

Примечание

Количество

851880C91

CYLINDER

ASSY, boom control hyd (consists of all parts listed unless otherwise noted)

2шт.

1

850901C1

BODY ASSY, cylinder

1шт.

2

850902C1

ROD

ASSY, piston

1шт.

3

851731C1

PISTON, front half

1шт.

4

851730C1

PISTON, rear half

1шт.

5

811850C1

NUT

7/8-14 lock

1шт.

6

851727C1

CYLINDER END CAP

END, cylinder head

1шт.

7

SEAL, hyd cyl piston heavy duty (for service order 1-851732C91 kit)

1шт.

8

O-RING, 7/8" dia piston half (for service order 1-851732C91 kit)

1шт.

9

O-RING, 2-1/2" dia end (for service order 1-851732C91 kit)

1шт.

10

RING, cyl end o-ring back-up (for service order 1-851732C91 kit)

1шт.

11

SEAL, cyl end gland (for service order 1-851732C91 kit)

1шт.

12

SEAL, piston rod dust (for service order 1-851732C91 kit)

1шт.

13

851506C1

PIN

boom cyl to sub-frame (not part of cylinder)

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 headed dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

14

851444C1

PIN

boom cyl to boom (not part of cylinder)

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 headed dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

851732C2

SEAL KIT

cylinder seal service consists of (1) dust seal (NSS), (1) seal (NSS), (1) ring (NSS), (1) seal (NSS), (1) o-ring (NSS), (1) o-ring (NSS)

1шт.

Выбрано товаров: 20
