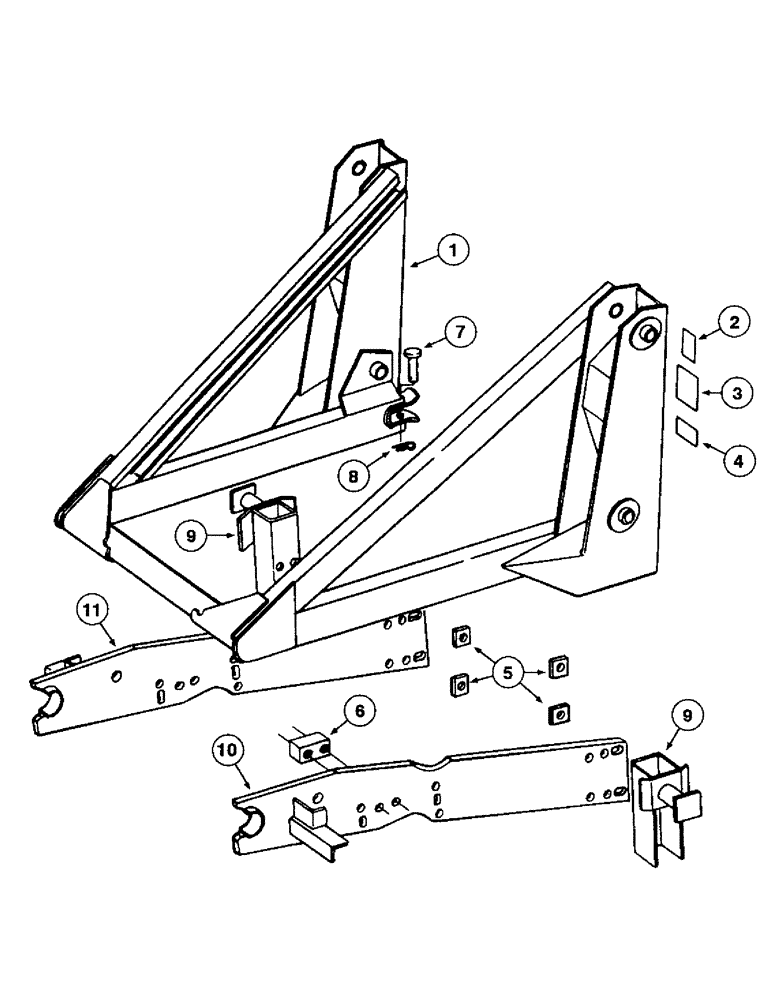

Запчасти Case IH 2250 (2-12) - FRAME AND BRACKETS

1

852962C92

FRAME ASSY

FRAME ASSEMBLY - sub, with decals (replaces 851910C1)

1шт.

2

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170R1)

1шт.

5

851898C1

BAR

- front bracket mounting spacer

4шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch (Replaces 271772)

4шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch (replaces 467750R1)

4шт.

6

853491C2

BAR

- bumper, for use with ZF type front axle

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch (replaces 589068R1)

4шт.

7

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch (replaces Q3795)

2шт.

8

1978738C1

HAIR PIN COTTER

3/16", quick attachable (replaces 599744R1)

2шт.

9

1343397C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting rear RH (replaces 851893C1)

1шт.

9

1343396C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting rear LH (replaces 851893C1)

1шт.

10

851332C3

BRACKET

ASSEMBLY - sub frame mounting front LH (replaces 851332C2)

1шт.

11

851333C3

BRACKET

ASSEMBLY - sub frame mounting front RH (replaces 851333C2 )

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (replaces 271769)

16шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

8шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch (replace 467750R1)

8шт.

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 1/8 inch (replaces 106268)

2шт.

853491C2

BAR

- bumper, for use with ZF type front axle

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch (replaces 589068R1)

4шт.
