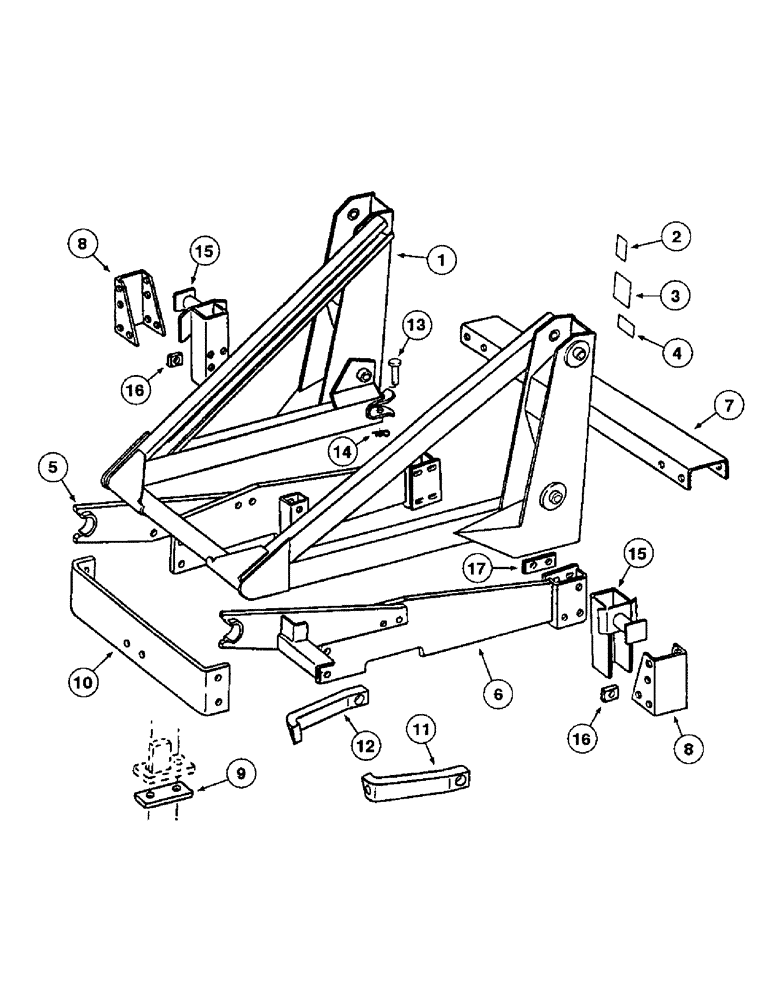

Запчасти Case IH 2250 (2-10) - FRAME AND BRACKETS

1

852962C92

FRAME ASSY

FRAME ASSEMBLY - sub, with decals (replaces 851910C1)

1шт.

2

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170C1)

1шт.

5

852835C1

BRACKET

ASSEMBLY - sub frame mounting RH, no longer available

1шт.

6

852834C1

BRACKET

ASSEMBLY - sub frame mounting LH, no longer available

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch (replaces 271779)

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

4шт.

7

851499C1

CHANNEL

- rear mounting bracket connecting

1шт.

8

851496C1

CHANNEL

- connecting channel support, no longer available

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

16шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

16шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

16шт.

9

851491C1

BAR

- tractor bumper spacer, no longer available

1шт.

10

851998C1

SUPPORT

- mounting bracket front

1шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch (Replaces 271725)

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Replaces 271771)

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

2шт.

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch (replaces 21471R1)

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

4шт.

11

852879C1

SUPPORT

- tractor bolster LH

1шт.

12

852880C1

SUPPORT

- tractor bolster RH

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Replaces 271771)

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Replaces 271727) Hex, 5/8"-11 x 3", G5

2шт.

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch (replaces 21796R1)

4шт.

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch (replaces 21471R1)

2шт.

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

(Replaces 25548R1) 13/16" x 1 1/2" x .219", HDN

2шт.

13

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch (replaces Q3795)

2шт.

14

1978738C1

HAIR PIN COTTER

3/16", quick attachable (replaces 599744R1)

2шт.

15

1343397C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting rear RH (replaces 851893C1)

1шт.

15

1343396C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting rear LH (replaces 851893C1)

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Replaces 271771)

6шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

6шт.

16

851898C1

BAR

- rear bracket mounting spacer

6шт.

17

851500C1

BAR

- LH rear bracket mounting spacer

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548)

4шт.
