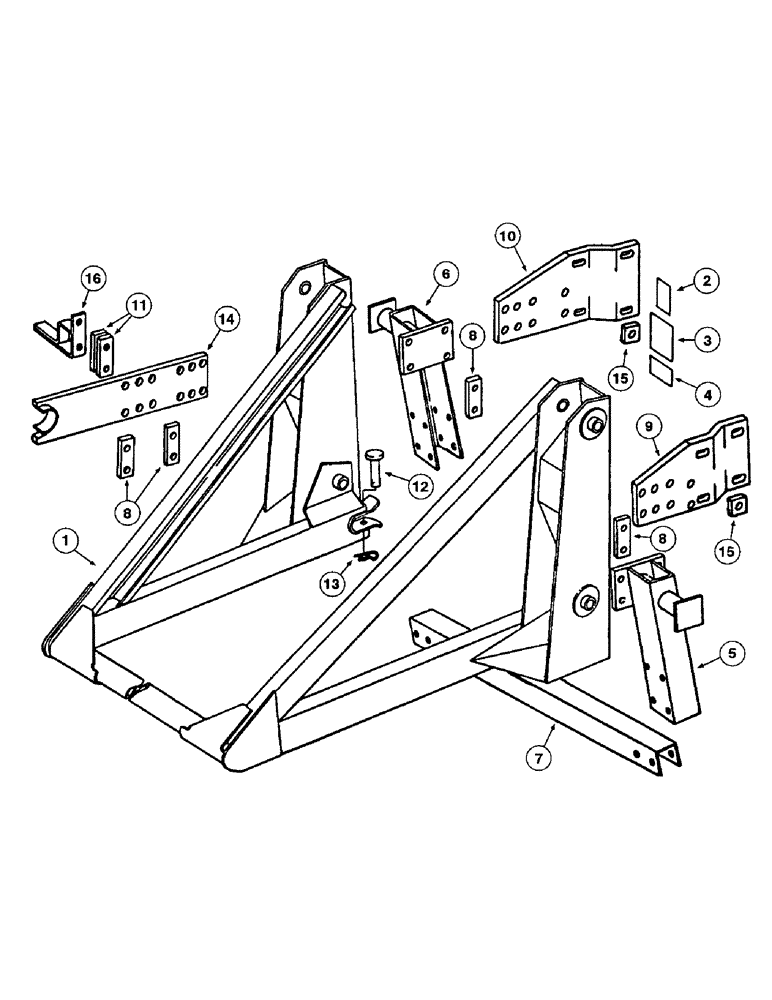

Запчасти Case IH 2250 (2-08) - FRAME AND BRACKETS

1

852962C92

FRAME ASSY

FRAME ASSEMBLY - sub, with decals (replaces 851910C1)

1шт.

2

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170C1)

1шт.

5

851981C1

BRACKET

ASSEMBLY - sub frame mounting, rear LH

1шт.

6

851982C1

BRACKET

ASSEMBLY - sub frame mounting, rear RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

8шт.

7

851987C1

CHANNEL

- rear mounting bracket

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

8шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

8шт.

8

851828C1

BAR

- bracket mounting spacer

6шт.

9

851993C1

SUPPORT

- sub frame rear bracket LH

1шт.

10

851994C1

SUPPORT

- sub frame rear bracket RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

4шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch (replaces 271775)

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch (replaces 589068R1)

4шт.

11

851832C2

BAR

- bracket support mounting

4шт.

12

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch (replaces Q3795)

2шт.

13

1978738C1

HAIR PIN COTTER

3/16", quick attachable (replaces 599744R1)

2шт.

14

851988C1

BRACKET

ASSEMBLY - sub frame mounting front

2шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch (Replaces 271725)

8шт.

15

851898C1

BAR

- bracket support rear spacer

8шт.

16

851990C1

GUIDE

ASSEMBLY - sub frame

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Replaces 271727) Hex, 5/8"-11 x 3", G5

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

4шт.
