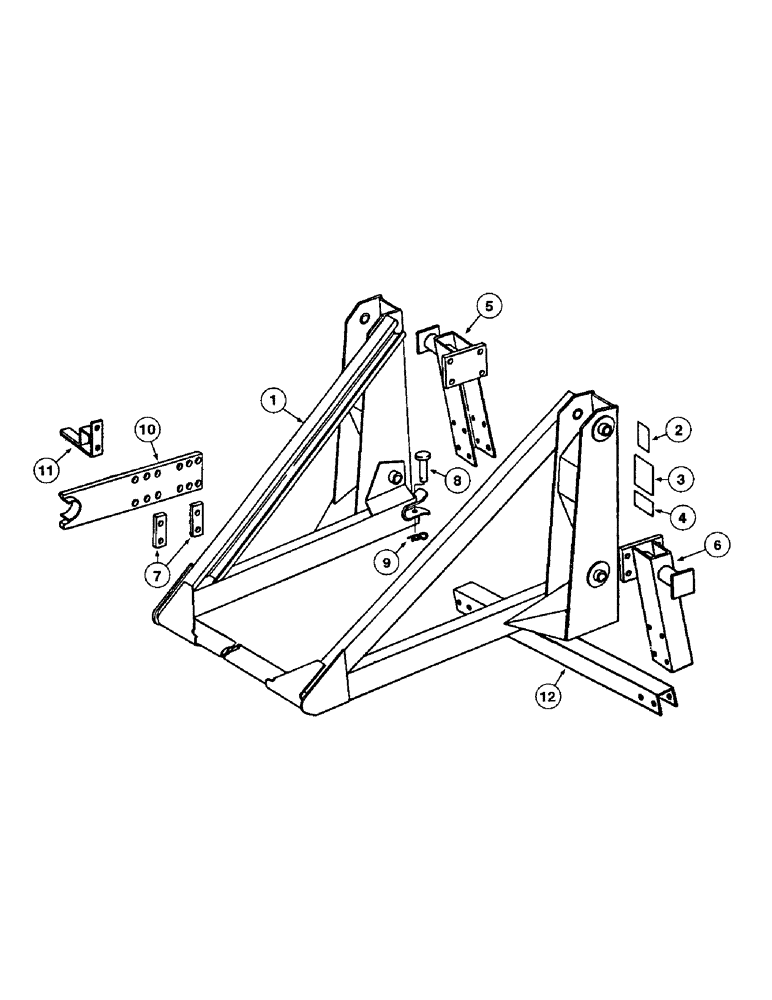

Запчасти Case IH 2250 (2-04) - FRAME AND BRACKETS

1

852962C92

FRAME ASSY

FRAME ASSEMBLY - sub, with decals (replaces 851910C1)

1шт.

2

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170C1)

1шт.

5

851982C1

BRACKET

ASSEMBLY - sub frame mounting, rear RH

1шт.

6

851981C1

BRACKET

ASSEMBLY - sub frame mounting, rear LH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

8шт.

7

851828C1

BAR

- front bracket mounting spacer

4шт.

8

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch (replaces Q3795)

2шт.

9

1978738C1

HAIR PIN COTTER

3/16", quick attachable (replaces 599744R1)

2шт.

10

851988C1

BRACKET

ASSEMBLY - sub frame mounting, front

2шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch (Replaces 271725)

8шт.

11

851990C1

GUIDE

ASSEMBLY - sub frame

2шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch (Replaces 271725)

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

4шт.

12

851987C1

CHANNEL

- rear mounting bracket

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

8шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

8шт.

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

replaces 30542R1 Hex, M16 x 60, 8.8

10шт.

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm (Replaces 934185R1)

10шт.
