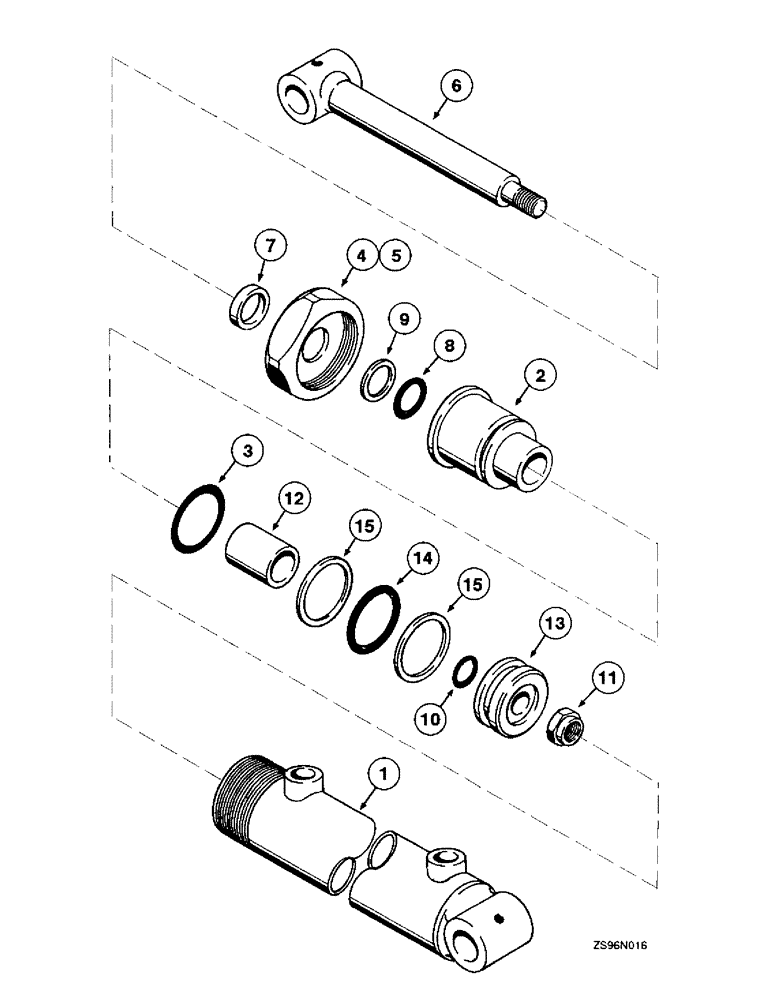

Запчасти Case IH 2250 (5-30) - WELDED DOUBLE ACTING CYLINDERS, 2 ID X 15 INCH STROKE

1

T53895

TUBE ASSY.,2.373" OD x 28.75" L

TUBE - cylinder

1шт.

2

T53357

HEAD

GLAND - cylinder (replaces 851024C1)

1шт.

3

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Gland (Replaces 290987r1 ) -224, 70 Duro, 1.734" ID x .139" Thk

1шт.

Part of seal kit P/N T63155

1шт.

4

851023C1

END

CAP - retaining, gland, use on 851035C91 cylinder assembly

1шт.

5

T53353

O-RING,1.6" ID x 2.02" OD x 0.21"

CAP - retaining, gland, use on T53894 cylinder assembly

1шт.

6

T53896

ROD ASSY.

ROD - piston

1шт.

7

B17291

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N T63155

1шт.

8

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Piston rod -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

Part of seal kit P/N T63155

1шт.

9

B17298

BACK-UP RING

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N T63155

1шт.

10

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Piston rod, nut end (Replaces 350684r1 ) -210, 70 Duro, .734" ID x .139" Thk

1шт.

Part of seal kit P/N T63155

1шт.

11

131-909

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF, piston rod (replaces 851124C1)

1шт.

12

T53897

SPACER

- piston rod

1шт.

13

B17272

PISTON

- cylinder

1шт.

14

T53353

O-RING,1.6" ID x 2.02" OD x 0.21"

- piston

1шт.

Part of seal kit P/N T63155

1шт.

15

B17296

BACK-UP RING

RING - backup, piston O-ring

2шт.

Part of seal kit P/N T63155

1шт.

T63155

KIT

- seal, Includes: Ref. 3, 7 - 10, 14 and 15

1шт.
