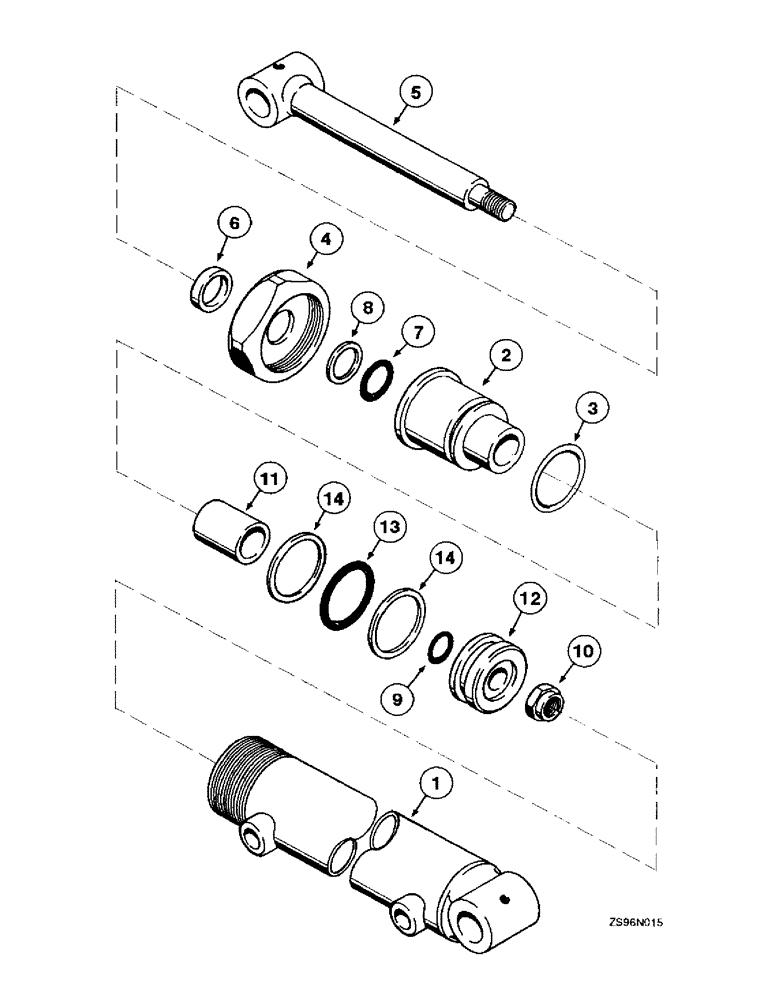

Запчасти Case IH 2250 (5-28) - WELDED DOUBLE ACTING CYLINDERS, 2 ID X 12-3/4 INCH STROKE

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

T53357

HEAD

GLAND - cylinder (replaces 851024C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

4

851023C1

END

CAP - retaining, gland

1шт.

5

T53388

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N T63155

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N T63155

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N T63155

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston rod, nut end

1шт.

Part of seal kit P/N T63155

1шт.

10

131-909

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF, piston rod (replaces 851124C1)

1шт.

11

T53386

SPACER

- piston rod (replaces 851122C1)

1шт.

12

B17272

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N T63155

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N T63155

1шт.

T63155

KIT

- seal, Includes: Ref. 6 - 9, 13 and 14

1шт.
