Запчасти Case IH 2250 (5-24) - COTTON BALE CLAMP, DISCONTINUED 1978, 2350 AND 2450 LOADERS

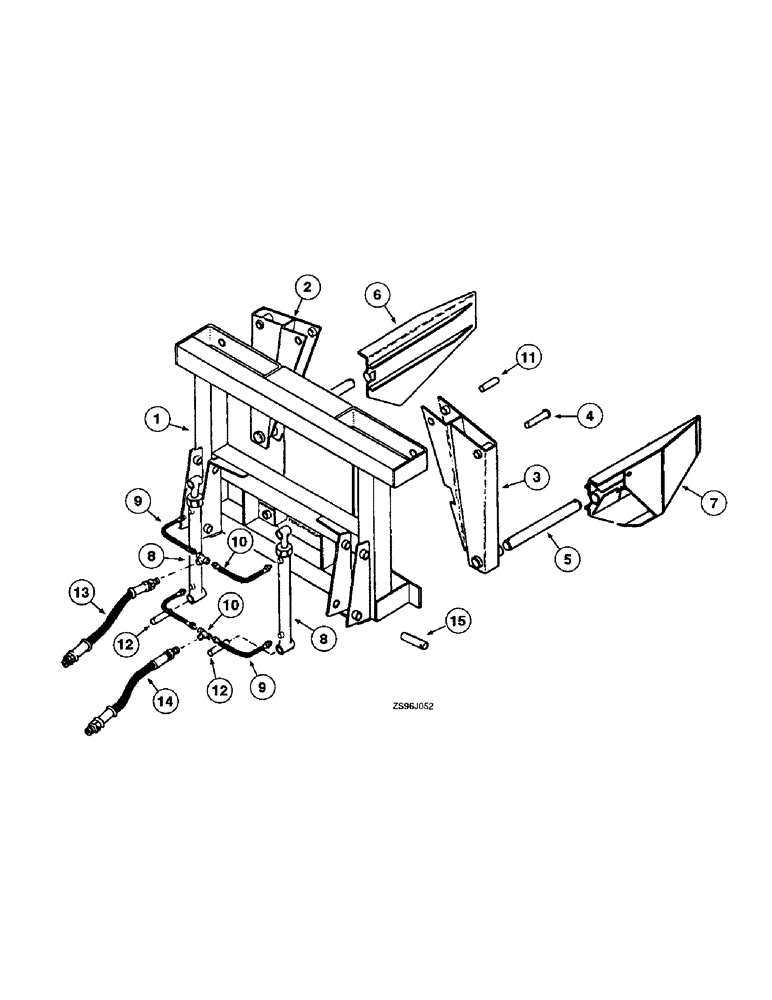

Схема запчастей Case IH 2250 - (5-24) - COTTON BALE CLAMP, DISCONTINUED 1978, 2350 AND 2450 LOADERS
3
1
15
2
9
8
11
7
10
9
6
8
14
10
13
12
4
5
12

Артикул

Название

Примечание

Количество

1

851037C1

FRAME

ASSEMBLY - main

1шт.

2

851038C1

ARM

ASSEMBLY - clamp LH

1шт.

3

851039C1

ARM

ASSEMBLY - clamp RH

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

4

851047C1

PIN

ASSEMBLY - clamp arm pivot

2шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

5

851042C1

SHAFT

- paddle pivot

2шт.

138-2056

PIN,6.35mm OD x 63.5mm L, Coiled

(replaces 441013R1) 1/4" x 2 1/2", Coiled

4шт.

6

851040C1

CLAMP

ASSEMBLY - cotton LH

1шт.

7

851041C1

CLAMP

ASSEMBLY - cotton RH

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

8

851032C91

CYLINDER

ASSEMBLY - cotton bale clamp, parts list Figure 5-29, no longer available, order T53146 cylinder, see below

1шт.

8

T53146

CYLINDER

ASSEMBLY - cotton bale clamp, parts list Figure 5-29

1шт.

9

851118C1

HOSE

ASSEMBLY - cylinder, 23 inch long

4шт.

10

218-1602

UNION

TEE - swivel (replaces 851119C1)

2шт.

11

61073C1

AXLE PIN

PIN - clamp arm cylinder upper (replaces 378479R1)

2шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

12

851506C1

PIN

- clamp arm cylinder lower

2шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

13

851114C1

HOSE

ASSEMBLY - third cylinder, 84 inch long

1шт.

14

851113C1

HOSE

ASSEMBLY - third cylinder, 72 inch long

1шт.

15

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

Выбрано товаров: 27
