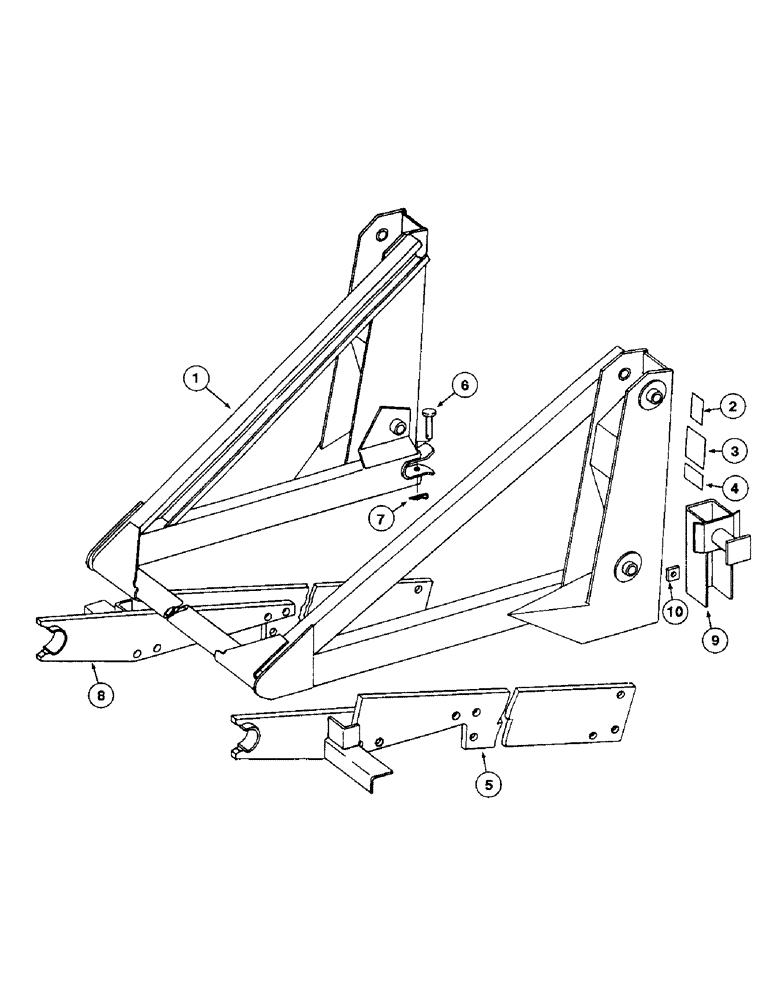

Запчасти Case IH 2250 (2-02) - FRAME AND BRACKETS

1

852962C92

FRAME ASSY

FRAME ASSEMBLY - sub, with decals (replaces 851910C1)

1шт.

2

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2)

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170C1)

1шт.

5

852993C1

BRACKET

ASSEMBLY - sub-frame mounting, front LH (replaces 851888C1)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (replaces 271773)

6шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch (replaces 467750R1)

3шт.

6

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch (replaces Q3795)

2шт.

7

1978738C1

HAIR PIN COTTER

3/16", quick attachable

2шт.

8

852994C1

BRACKET

ASSEMBLY - sub frame mounting, front RH (replaces 851889C1)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (replaces 271773)

6шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch (replaces 467750R1)

3шт.

9

1343397C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting, rear RH (replaces 851893C1)

1шт.

9

1343396C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting, rear LH (replaces 851893C1)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (replaces 271773)

8шт.

10

851898C1

BAR

- rear bracket mounting spacer

12шт.
