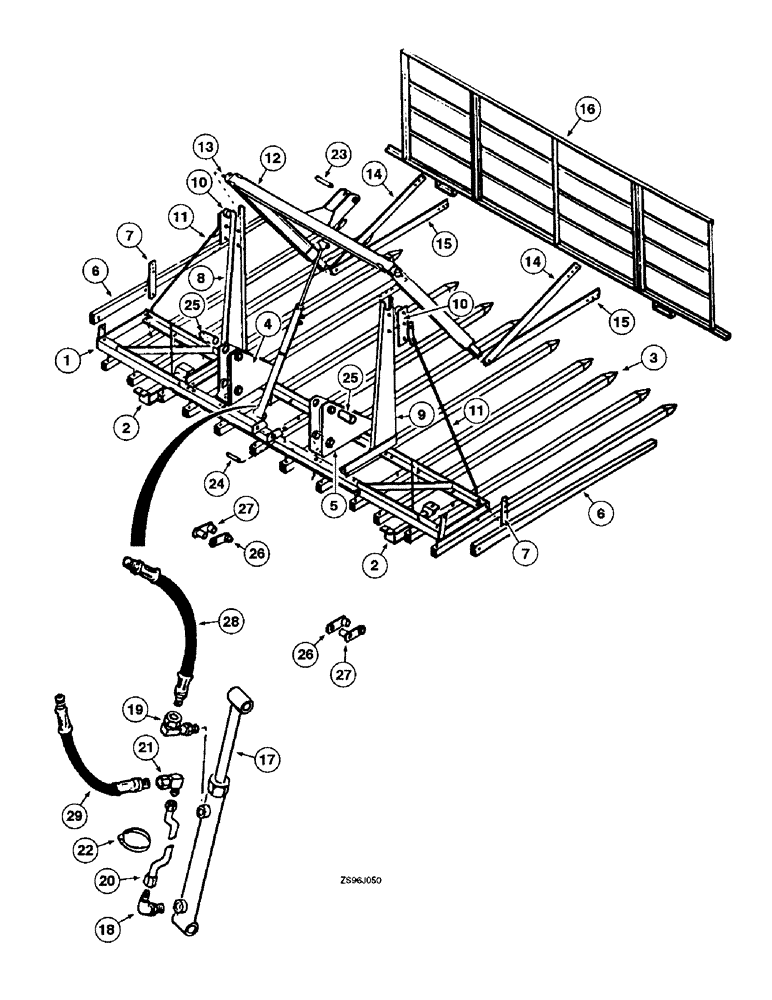

Запчасти Case IH 2250 (5-16) - PUSH-OFF HAY STACKER, DISCONTINUED 1978, 2350 AND 2450 LOADERS

1

REF

INSTRUCTION

FRAME ASSEMBLY - main, discontinued for service

1шт.

2

851015C1

SHOE

ASSEMBLY - frame skid

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces 180126)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

6шт.

3

851001C1

TOOTH

- stacker main

12шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces 180138) Hex, 3/8"-16 x 3", G5

20шт.

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

(Replaces 189305) Hex, 3/8"-16 x 3 1/2", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

24шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

24шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

36шт.

4

851010C1

HINGE

ASSEMBLY - stacker attaching LH

1шт.

5

851011C1

HINGE

ASSEMBLY - stacker attaching RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

8шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

8шт.

6

851000C1

TOOTH

- stacker side

2шт.

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch (replaces 441549R1)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

7

851014C1

BAR

- side tooth

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

8

851006C1

SUPPORT

ASSEMBLY - rack swing arm LH

1шт.

9

851007C1

SUPPORT

ASSEMBLY - rack swing arm RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

4шт.

10

851009C1

BRACKET

- swing arm pivot

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

(Replaces bolt 271547) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

4шт.

11

851008C1

BRACE

ASSEMBLY - swing arm pivot

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

2шт.

12

851012C1

ARM

ASSEMBLY - rack swing

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

13

851013C1

ROD

ASSEMBLY - swing arm tie

1шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

2шт.

14

851017C1

BAR

- push-off linkage outer

2шт.

15

851018C1

BAR

- push-off linkage inner

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces 180130) Hex, 3/8"-16 x 2", G5

4шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch (replaces 180188)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

16

851019C1

RACK

ASSEMBLY - push off

1шт.

17

851005C91

CYLINDER

ASSEMBLY - 2 ID x 21-1/4 stroke, parts list Figure 5-32

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: o-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

19

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- cylinder assembly (replaces 851088C1), Includes: o-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

20

851004C1

TUBE,19.187" L

ASSEMBLY - cylinder rear port

1шт.

21

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 degree, 1/2 female pipe x 1/2 inch male pipe (replaces 293351R91)

1шт.

22

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - tube, cylinder push-off hay stacker (replaces 279028R91)

1шт.

23

61073C1

AXLE PIN

PIN - swing arm cylinder (replaces 378479R1)

1шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

24

851444C1

PIN

- pivot, swing arm cylinder

1шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

25

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

26

851043C1

LINK

ASSEMBLY - float

2шт.

27

851044C1

LINK

ASSEMBLY - float with pin

2шт.

28

851114C1

HOSE

ASSEMBLY - third cylinder, 84 inch long

1шт.

29

851113C1

HOSE

ASSEMBLY - third cylinder, 72 inch long

1шт.
