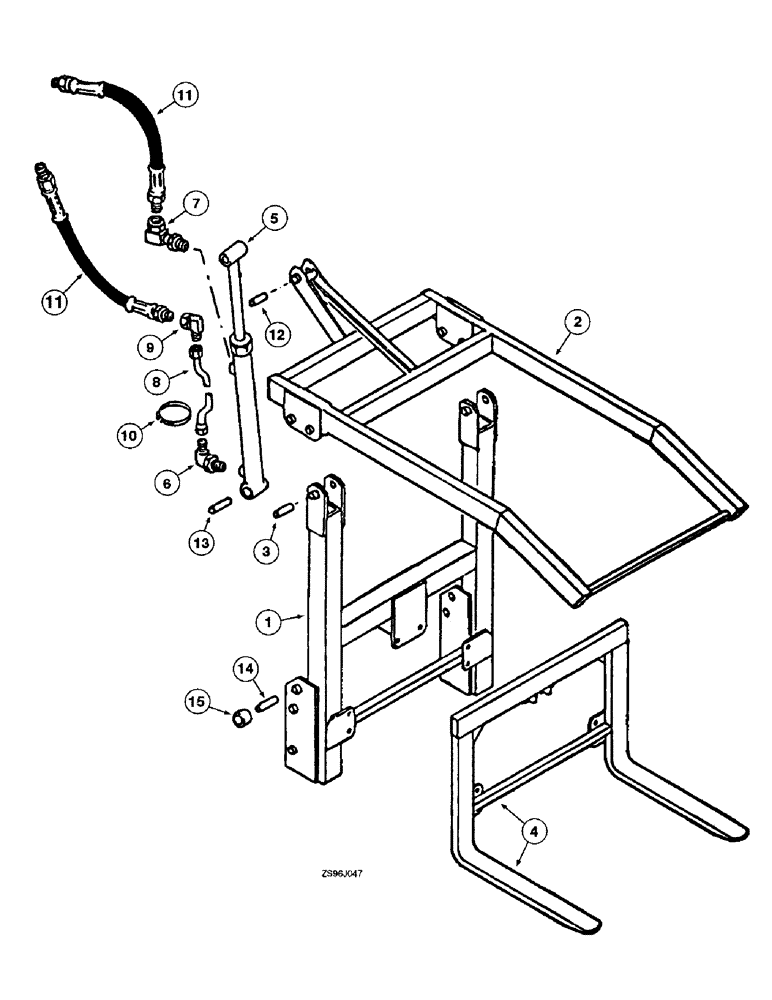

Запчасти Case IH 2250 (5-10) - ROUND BALE HANDLER, DISCONTINUED 1978, 2350 AND 2450 LOADERS

1

851070C1

FRAME

ASSEMBLY - main

1шт.

2

T54060

ARM

ASSEMBLY - grapple (replaces 851046C1)

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

3

851506C1

PIN

- grapple arm pivot

2шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

4

T54057

RACK

FORK ASSEMBLY - mini-stack (replaces 851068C1), no longer available

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Replaces 271771)

6шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

6шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer 131046) 3/4"

6шт.

5

851035C91

CYLINDER

ASSEMBLY - round bale handle, parts list Figure 5-31, no longer available, order T53894 cylinder, see below

1шт.

5

T53894

CYLINDER ASSY.

CYLINDER ASSEMBLY - round bale handle, parts list Figure 5-31

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16 inch straight (replaces 109455)

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: o-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

7

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- cylinder assembly (replaces 851088C1), Includes: o-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

8

851004C1

TUBE,19.187" L

ASSEMBLY - cylinder rear port

1шт.

9

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 degree, 1/2 female pipe x 1/2 inch male pipe (replaces 293351R91)

1шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - tube, cylinder round bale handler (replaces 279028R91)

1шт.

11

851115C1

HOSE

ASSEMBLY - third cylinder, 96 inch long

2шт.

12

61073C1

AXLE PIN

PIN - grapple cylinder (replaces 378479R1)

1шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

13

851444C1

PIN

- pivot, grapple cylinder

1шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

14

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

15

378555R1

SPACER

BUSHING - spacer

4шт.
