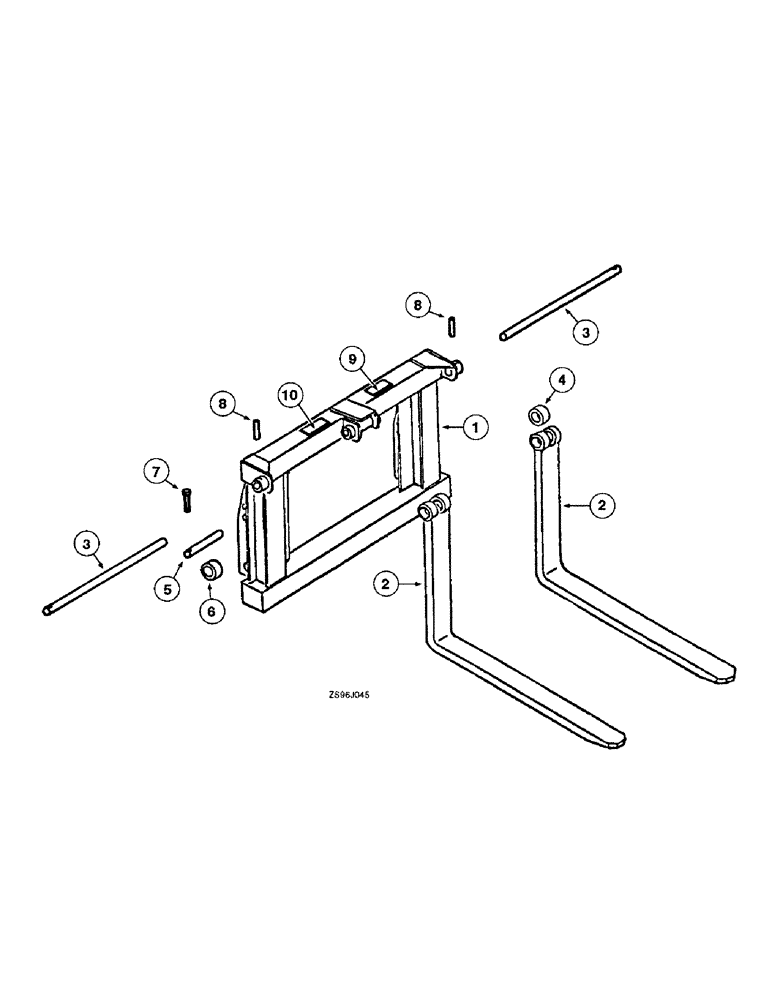

Запчасти Case IH 2250 (5-06) - FORK LIFT, 2250, 2350 AND 2450 LOADERS

1

851074C1

FRAME

- main, with decals

1шт.

2

T54640

TOOTH

ASSEMBLY - fork lift (replaces 851071C1)

2шт.

3

T54641

PIN

ROD - fork mounting (replaces 851073C1)

2шт.

4

T54642

BUSHING

- lock (replaces 851072C1)

2шт.

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SCREW - square head cup point, 3/8 NC x 1/2 inch (replaces 22211R1 )

2шт.

5

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

6

378555R1

SPACER

BUSHING - spacer, for bucket cylinder pin

4шт.

7

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

8

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

(Replaces 25383R1) 7/16" x 2 1/2", Slotted

2шт.

9

321-4735

DECAL

- warning, max load limit (replaces 852873C2)

1шт.

10

853649C1

PRODUCT GRAPHIC

DECAL - warning, large load rollback

1шт.
