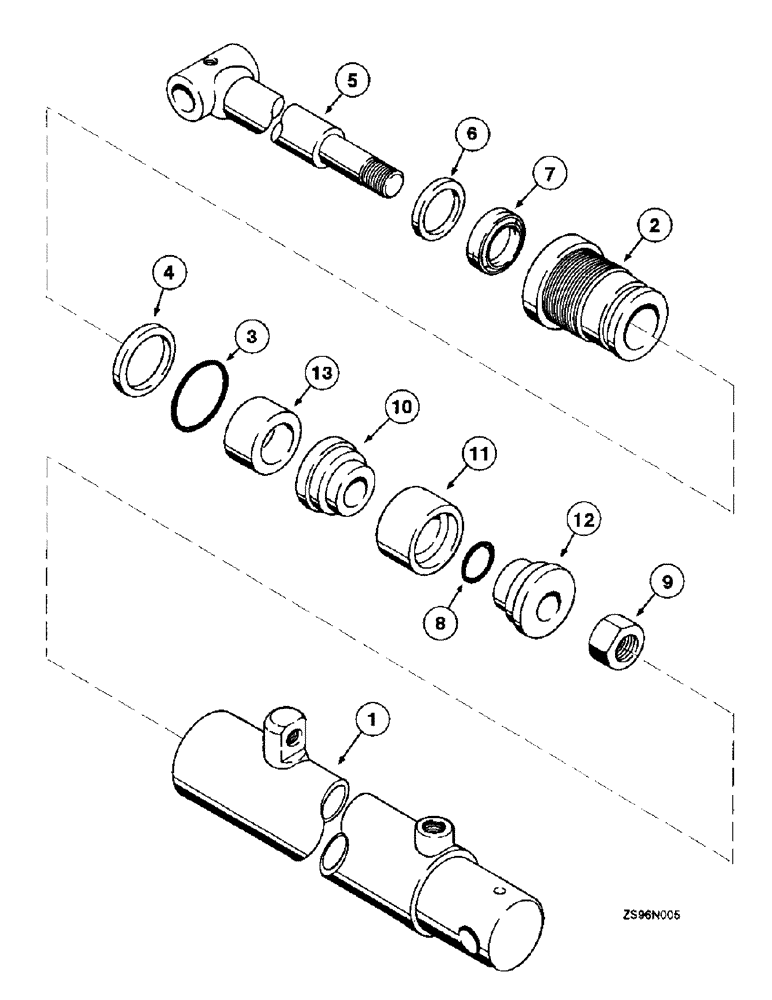

Запчасти Case IH 2250 (2-58) - WELDED DOUBLE ACTING CYLINDERS, 2-1/4 ID X 18-3/8 INCH STROKE

852985C91

CYLINDER

CILINDER ASSEMBLY - 2-1/4 ID x 18-3/8 stroke, 3/4-16 inch ports, Includes: Ref. 1 - 13

1шт.

This is a cylinder supplied by Pneu Hyd. Industries. The part number should be stamped on the bottom end of the cylinder.

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

851354C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 851364C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 851364C91

1шт.

5

851341C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 851364C91

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 851364C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 851364C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

851351C1

PISTON

- split, rod end

1шт.

11

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

Part of seal kit P/N 851364C91

1шт.

12

851352C1

PISTON

- split, nut end

1шт.

13

851363C1

BUSHING

- stroke stop

1шт.

851364C91

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 8 and 11

1шт.
