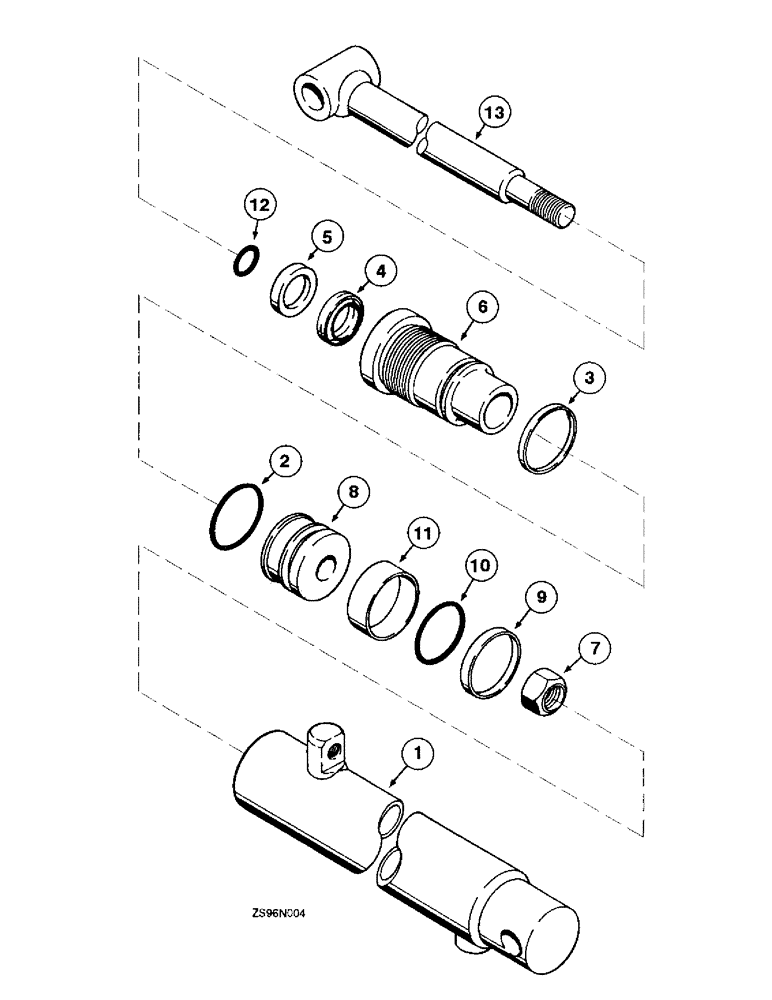

Запчасти Case IH 2250 (2-56) - BOOM CYLINDER, 2-1/2 INCH BORE X 28-3/16 INCH STROKE

1272455C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2-1/2 ID X 28-3/16 inch stroke, Includes: Ref. 1 - 13

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - bucket cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal kit P/N 93325C2

1шт.

3

NSS

NOT SOLD SEPARAT

BACKUP - O-ring

1шт.

Part of seal kit P/N 93325C2

1шт.

4

NSS

NOT SOLD SEPARAT

U-CUP - piston rod

1шт.

Part of seal kit P/N 93325C2

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 93325C2

1шт.

6

93324C1

HEAD

GLAND - cylinder

1шт.

7

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1) 7/8"-14, GC

1шт.

8

93323C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 93325C2

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N 93325C2

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal kit P/N 93325C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 93325C2

1шт.

13

93322C1

ROD ASSY.

ROD - piston

1шт.

93325C2

SEAL KIT

- seal, Includes: Ref. 2 - 5 and 9 - 12

1шт.
