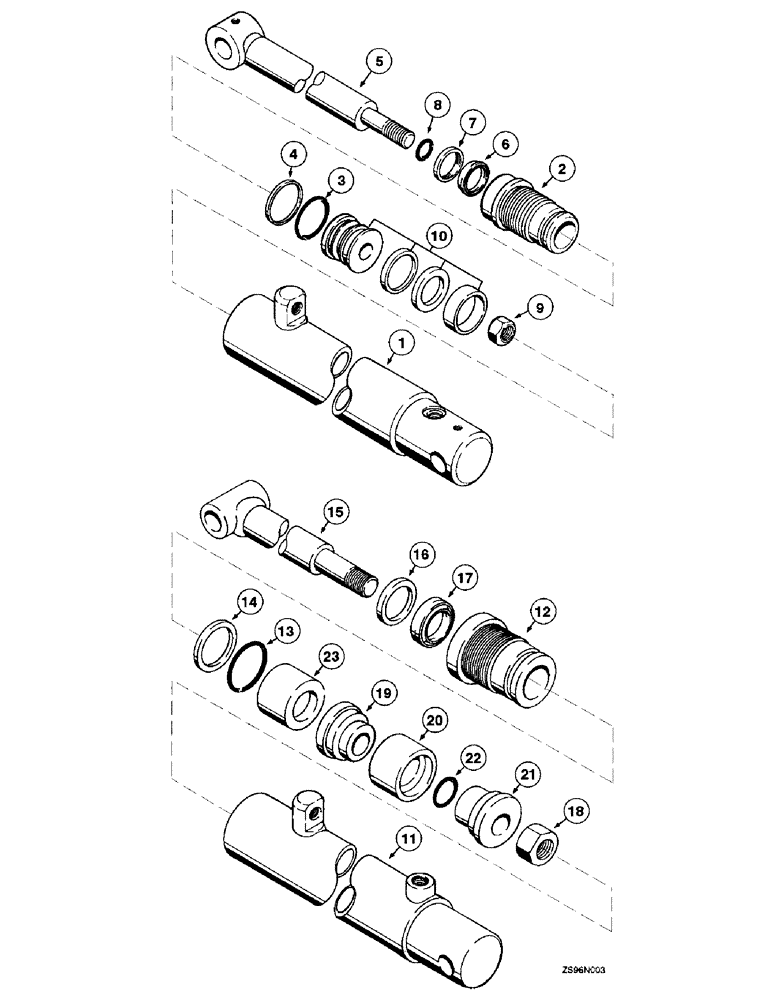

Запчасти Case IH 2250 (2-54) - BOOM CYLINDER, 2-1/2 INCH BORE X 28-3/16 INCH STROKE

853619C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 ID x 28-3/16 stroke, 3/4 -16 inch ports, no longer available, order 1272455C91 cylinder assembly, Figure 2-56, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

852989C1

GLAND

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 852995C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 852995C91

1шт.

5

853621C1

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with seals

1шт.

Part of seal kit P/N 852995C91

1шт.

852995C91

SEAL KIT

- seal, Includes: Refs. 3, 4, 6, 7, 8 and 10

1шт.

850912C91

CYLINDER

ASSEMBLY - 2 -1/2 ID x 28 -3/16 stroke, 3/4 -16 inch ports, no longer available, order 1272455C91 cylinder assembly, Figure 2-56, Includes: Ref. 11 - 23

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

12

850892C1

END

GLAND - cylinder, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 2-5/16 ID x 2-1/2 inch O, gland, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

Part of seal kit P/N 850914C91

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

Part of seal kit P/N 850914C91

1шт.

15

850889C1

ROD

- piston, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

Part of seal kit P/N 850914C91

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

Part of seal kit P/N 850914C91

1шт.

18

359798C1

LOCK NUT,1"-14, GC

NUT - hex, self-locking, 1 inch NF, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

19

850890C1

PISTON

- split, rod end, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

20

NSS

NOT SOLD SEPARAT

PACKING - piston, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

Part of seal kit P/N 850914C91

1шт.

21

850891C1

PISTON

- split, nut end, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1 ID x 1-1/4 inch OD, piston, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

Part of seal kit P/N 850914C91

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - stroke stop, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.

850914C91

SEAL KIT

- seal, Includes: Refs. 13, 14, 16, 17, 20 and 22, 2-1/2 ID BORE X 28-3/16 INCH STROKE

1шт.
