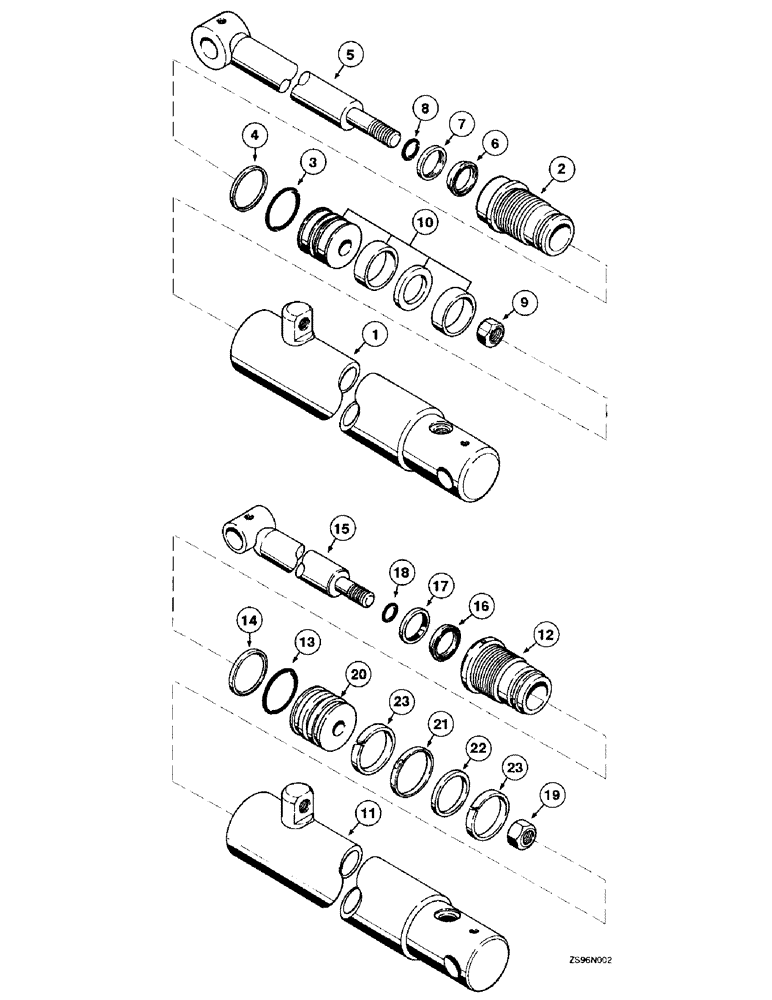

Запчасти Case IH 2250 (2-52) - WELDED DOUBLE ACTING CYLINDERS, 2-1/4 ID X 18-3/8 INCH STROKE

853607C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/4 ID x 18-3/8 stroke, 3/4-16 inch ports, no longer available, order 1272454C1 cylinder assembly, see below, Includes: Ref. 1 - 10

1шт.

Made by Kingston. The OD of the Rod Wiper Seal will be 1.75" If dealer orders the kit for this cylinder and everything fits but the rod wiper seal, he can order seal P/N 536308R91 and that should work.

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

2

852999C1

GUIDE

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 853601C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 853601C91

1шт.

5

852997C1

ROD ASSY.

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 853601C91

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 853601C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 853601C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with required seals

1шт.

Part of seal kit P/N 853601C91

1шт.

853601C91

SEAL KIT

- seal, Includes: Refs. 3, 4, 6 - 8 and 10

1шт.

1272454C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/4 ID x 18-3/8 stroke, 3/4-16 inch ports, Includes: Ref. 11 - 23

1шт.

Made by Iowa Industrial Hydraulics. The OD of its rod wiper seal is 1.875"

1шт.

11

1340896C1

TUBE ASSY.

TUBE - cylinder, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

12

1340897C1

HEAD

GLAND - cylinder, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

15

1340898C1

STEM

ROD - piston, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston rod, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

19

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1), 2-1/4 ID x 18-3/8" stroke 7/8"-14, GC

1шт.

20

1340899C1

PISTON

- cylinder, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston , 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup, piston seal, 2-1/4 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340900C1

1шт.

23

NSS

NOT SOLD SEPARAT

RING - wear, piston, 2-1/4 ID X 18-3/8 INCH STROKE

2шт.

Part of seal kit P/N 1340900C1

1шт.

1340900C1

SEAL KIT

- seal, Includes: Refs. 13, 14, 16 - 18 and 21 - 23 , 2-1/4 ID X 18-3/8 INCH STROKE

1шт.
