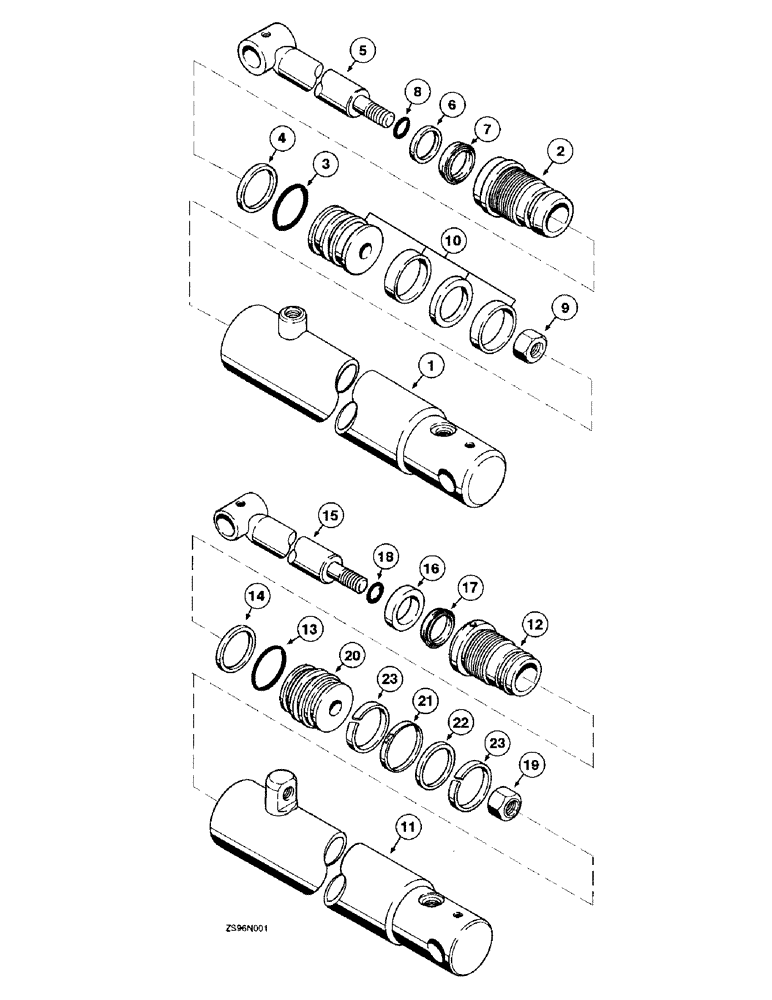

Запчасти Case IH 2250 (2-50) - WELDED DOUBLE ACTING CYLINDERS, 2 ID X 18-3/8 INCH STROKE

853613C92

CYLINDER

ASSEMBLY - 2 ID x 18-3/8 stroke, 3/4-16 inch ports, no longer available, order 1272452C1 cylinder assembly, see below, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE- cylinder

1шт.

2

853616C1

GUIDE

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 853617C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 853617C91

1шт.

5

853615C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 853617C91

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 853617C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 853617C91

1шт.

9

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, (Replaces 131-690) 3/4"-16, GC

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with seals

1шт.

Part of seal kit P/N 853617C91

1шт.

853617C91

SEAL KIT

- seal, Includes: Refs. 3, 4, 6 - 8 and 10

1шт.

1272452C1

CYLINDER,Double Acting, 28.57mm Rod, 466.73mm Stroke

ASSEMBLY - 2 ID x 18-3/8 stroke, 3/4-16 inch ports, Includes: Ref. 11 - 23

1шт.

11

1340887C1

TUBE ASSY.

TUBE - cylinder, 2 ID X 18-3/8 INCH STROKE

1шт.

12

1340888C1

HEAD

GLAND - cylinder, 2 ID X 18-3/8 INCH STROKE

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

15

1340889C1

STEM

ROD - piston, 2 ID X 18-3/8 INCH STROKE

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

19

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, (Replaces 131-1251), 2 ID x 18-3/8" stroke 3/4"-16, GC

1шт.

20

1340890C1

PISTON

- cylinder, 2 ID X 18-3/8 INCH STROKE

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup, piston seal, 2 ID X 18-3/8 INCH STROKE

1шт.

Part of seal kit P/N 1340891C1

1шт.

23

NSS

NOT SOLD SEPARAT

RING - wear, piston, 2 ID X 18-3/8 INCH STROKE

2шт.

Part of seal kit P/N 1340891C1

1шт.

1340891C1

SEAL KIT

- seal, Includes: Refs. 13, 14, 16 - 18, 21, 22 and 23, 2 ID X 18-3/8 INCH STROKE

1шт.
