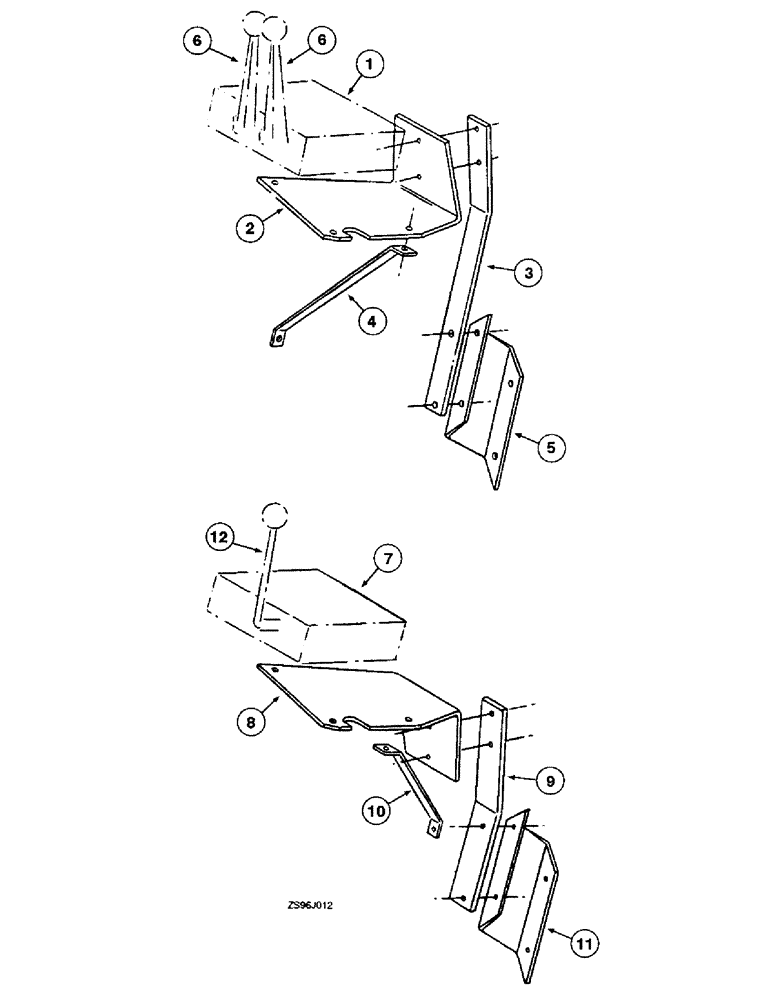

Запчасти Case IH 2250 (2-44) - EXTERNAL VALVE MOUNTING AND SUPPORTS, FOR USE WITH TWO LEVER VALVE CONTROL

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

2

851621C1

SUPPORT

- hydraulic control valve

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (replaces 180081)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (replaces 619855R1)

2шт.

3

851941C1

SUPPORT

- valve mounting

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180120)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

4

851489C1

SUPPORT

- control valve diagonal, for use on 633 tractor only

1шт.

5

851490C1

CHANNEL

- control valve mounting support, for use on 633 tractor only

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces 180122) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

6

REF

INSTRUCTION

LEVER - control, refer to hydraulic control valve

2шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces 180134)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

8

851381C1

SUPPORT

- valve

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces 180083)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (replaces 619855R1)

2шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch (replaces 20803R1)

2шт.

9

851379C1

SUPPORT

- valve mounting, for use on 4200 tractors order 144995A1

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces 180126 )

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

10

851489C1

SUPPORT

- control valve

1шт.

11

851490C1

CHANNEL

- control valve mounting support, for use on 633 tractor only, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

12

REF

INSTRUCTION

LEVER - control, refer to dual single lever control

1шт.
