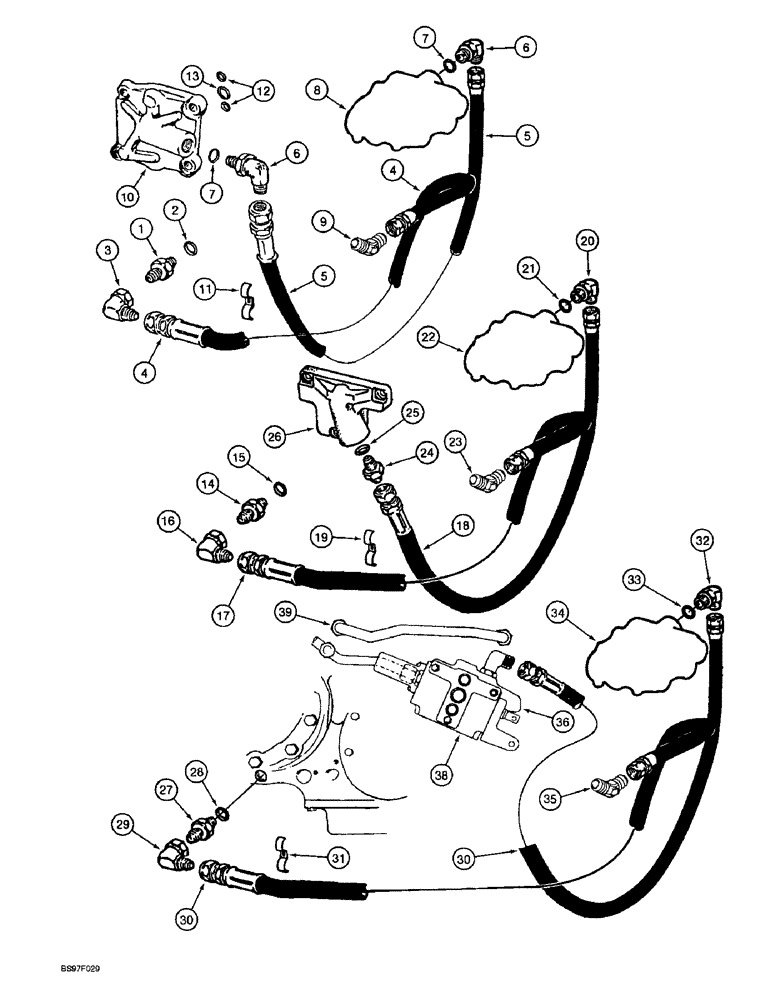

Запчасти Case IH 2250 (2-40) - HYDRAULICS, EXTERNAL CONTROL

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss (replaces 222648H1), Includes: Ref. 2

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (replaces 296247R1)

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel (Replaces 9410282)

1шт.

4

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

5

1978700C2

HOSE

- tractor to control valve pressure line, 58 inch long (replaces 851625C91)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

9

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- flared tube, 45 degree (replaces 9402866)

1шт.

10

123082C1

COVER

MANIFOLD - power beyond, tractor valve bank cover

1шт.

11

379045R1

CLAMP

- hose, hydraulic, dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.

12

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

(Replaces 20947R1 ) -117, 90 Duro, .799" ID x .103" Thk

2шт.

13

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Valve bank cover (Replaces 383219R1) -119, 90 Duro, .924" ID x .103" Thk

1шт.

14

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss (replaces 222648H1), Includes: Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (replaces 296247R1)

1шт.

16

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel (Replaces 9410282)

1шт.

17

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

18

1978700C2

HOSE

- tractor to control valve pressure line, 58 inch long (replaces 851625C91)

1шт.

19

379045R1

CLAMP

- hose, hydraulic, dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

23

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- flared tube, 45 degree (replaces 9402866)

1шт.

24

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

CONNECTOR - reducing, C-Z hydraulic, flared, 7/8 to 5/8 inch straight

1шт.

25

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk (Replaces 297459R1)

1шт.

26

470603R4

MANIFOLD

- power beyond, tractor valve bank cover

1шт.

27

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss (replaces 222648H1), Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (replaces 296247R1)

1шт.

29

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel (Replaces 9410282)

1шт.

30

1978700C2

HOSE

- tractor to control valve pressure line, 58 inch long (replaces 851625C91)

2шт.

31

379045R1

CLAMP

- hose, hydraulic, dual and return

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

34

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

35

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- flared tube, 45 degree (replaces 9402866)

1шт.

36

REF

INSTRUCTION

MANIFOLD - power beyond, tractor valve

1шт.

37

218-756

CAP,37 Degree, 7/8"-14

Not shown 37º, 7/8"-14

1шт.

38

REF

INSTRUCTION

VALVE - tractor auxiliary

1шт.

39

REF

INSTRUCTION

TUBE - auxiliary valve return

1шт.
