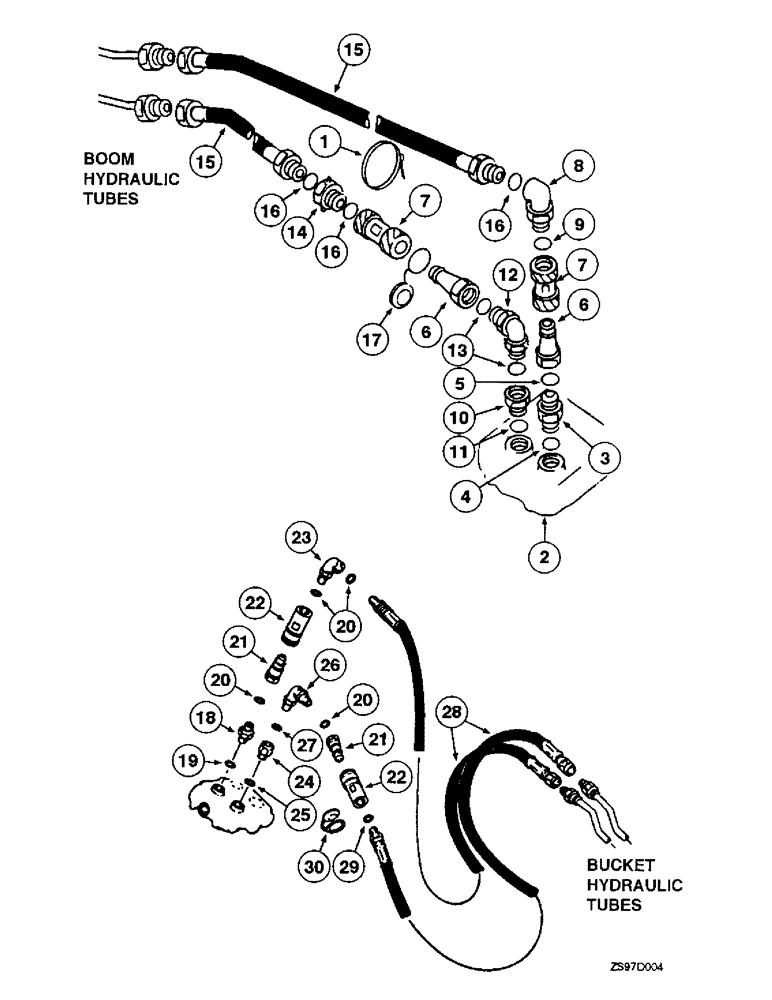

Запчасти Case IH 2250 (2-32) - HYDRAULICS, EXTERNAL VALVE

1

306132C1

CABLE TIE,14.5" L

CABLE STRAP Tie, 14 inch, hydraulic hose

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control for service parts refer to hydraulic control valve

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

(Replaces 384539R1), Incl. Ref. 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Replaces O-ring 570828R1)

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

4шт.

6

1272399C2

QUICK MALE COUPLING

Self-sealing, 7/8 inch NF, ISO standard, (Replaces 385149R1)

2шт.

7

1272400C1

COUPLING

Self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (Replaces 1282338C91)

2шт.

8

371357R91

ELBOW

90 degree, Special, Incl. Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

1шт.

10

372852R1

ADAPTER

UNION - valve assembly, hydraulic control, Incl. Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Replaces O-ring 570828R1)

1шт.

12

D48874

ELBOW

Valve assembly, hydraulic control (Replaces 196973C1), Incl. Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

1шт.

14

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - hydraulic oil flow

1шт.

15

REF

INSTRUCTION

HOSE ASSY - 1/2 ID x 95 inch long recommended hydraulic

2шт.

For service on I454, I464, I474, I574, I584, I633, I674, I684, I784, I884 and hydro 84 tractors using external loader valve for loader control order SAE 100R2 two wire braid hose with 7/8-14 J.I.C. female swivel at one end and 7/8-14 male fixed O-ring boss at opposite end, for service order 1978703C1 hose assembly

1шт.

15

REF

INSTRUCTION

HOSE ASSY - 1/2 ID x 95 inch long recommended hydraulic

2шт.

For service on I454, I464, I474, I574, I584, I633, I674, I684, I784, I884 and hydro 84 tractors using external loader valve for loader control order SAE 100R2 two wire braid hose with 7/8-14 J.I.C. female swivel at one end and 7/8-14 male fixed O-ring boss at opposite end, for service order 1978703C1 hose assembly

1шт.

15

1978703C1

HOSE ASSY.

1/2 ID x 95 inch long, 7/8-14 inch connections

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

3шт.

17

373220R1

PLUG

Dust, plastic

2шт.

18

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (Replaces 401757R11)

2шт.

19

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, 7/8-14 flare x 3/4-16 inch O-ring boss (Replaces 384539R1), Incl. Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Replaces O-ring 570828R1)

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

6шт.

22

1272399C2

QUICK MALE COUPLING

Self-sealing, 7/8 inch NF, ISO standard

2шт.

22

1272400C1

COUPLING

Self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (Replaces 1282338C91)

2шт.

23

371357R91

ELBOW

90 degree, special

1шт.

24

372852R1

ADAPTER

UNION - valve assembly, hydraulic control, Incl. Ref. 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Replaces O-ring 570828R1)

1шт.

26

D48874

ELBOW

90 degree, special

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

1шт.

28

1978703C1

HOSE ASSY.

1/2 ID x 95 inch long, with 7/8-14 connections

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Replaces 364885R1)

2шт.

30

373220R1

PLUG

Dust, plactic

2шт.

30

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (Replaces 401757R11)

2шт.

1282459C1

PACKAGE

KIT - coupler tag, male coupler ID tag, consists of (4) tag, black (NSS), (4) tag, green (NSS), (4) tag, blue (NSS), instructions (NSS), Not shown

1шт.
