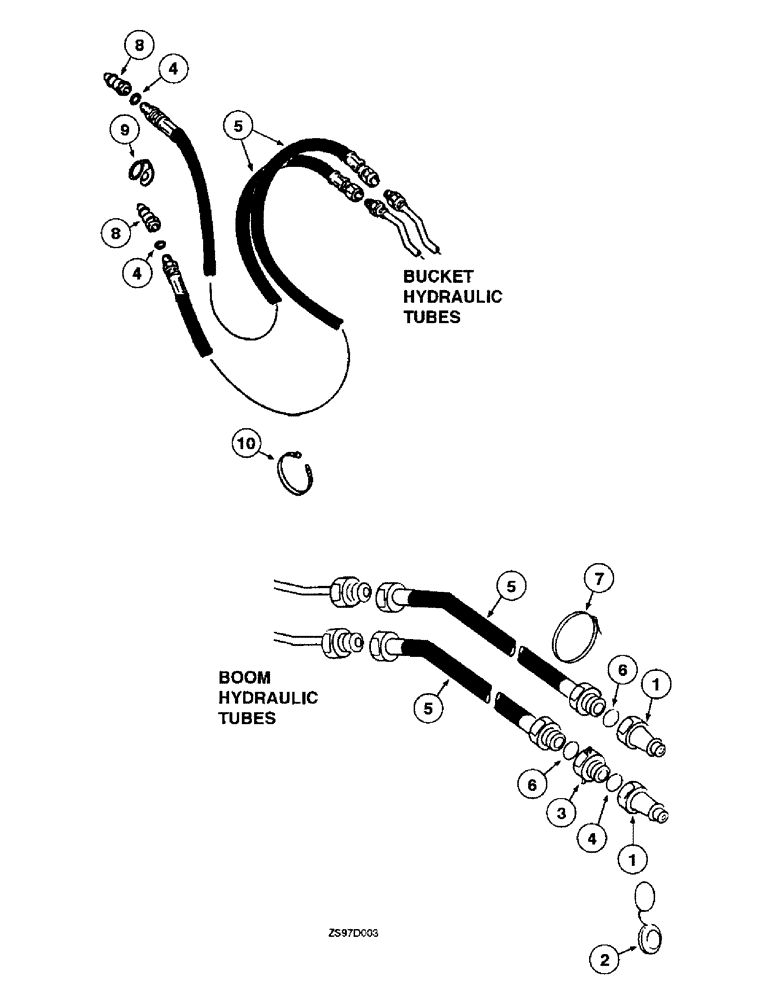

Запчасти Case IH 2250 (2-30) - HYDRAULICS, REAR MOUNT

1

1272399C2

QUICK MALE COUPLING

COUPLER ASSEMBLY, 7/8 NF, Self-Sealing, Male, refer to hydraulic couplers

2шт.

2

373220R1

PLUG

CAP - dust, plastic, no longer available

2шт.

2

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

2шт.

3

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - hydraulic oil flow, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

5

REF

INSTRUCTION

HOSE ASSEMBLY - 1/2 ID x 185 inch long, recommended hydraulic, Includes: Ref. 6

2шт.

For service on I454, I464, I474, I574, I584, I674, I684, I784, I884 and Hydro 84 tractors using tractor valve for loader control, order SAE 100R2 two wire braid hose with 3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed O-ring boss at opposite end, or item below

1шт.

5

REF

INSTRUCTION

HOSE ASSEMBLY - 1/2 ID x 185 inch long, recommended hydraulic, Includes: Ref. 6

2шт.

For service on I454, I464, I474, I574, I584, I674, I684, I784, I884 and Hydro 84 tractors using tractor valve for loader control, order SAE 100R2 two wire braid hose with 3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed O-ring boss at opposite end, or item below

1шт.

5

REF

INSTRUCTION

HOSE ASSEMBLY - 1/2 ID x 226 inch long, recommended hydraulic, Includes: Ref. 6

2шт.

For service on F460, F504, F544, I544, F560, F656, I656, I664, F666, F686, F706, I706, F756, I756, F766, F786, F886, Hydro 70 and Hydro 86 tractors using tractor valve for loader control, order SAE 100R2 two wire braid hose with 3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed O-ring boss at opposite end, or item below

1шт.

5

REF

INSTRUCTION

HOSE ASSEMBLY - 1/2 ID x 226 inch long, recommended hydraulic, Includes: Ref. 6

2шт.

For service on F460, F504, F544, I544, F560, F656, I656, I664, F666, F686, F706, I706, F756, I756, F766, F786, F886, Hydro 70 and Hydro 86 tractors using tractor valve for loader control, order SAE 100R2 two wire braid hose with 3/4-16 J.I.C. female swivel at one end and 7/8-14 male fixed O-ring boss at opposite end, or item below

1шт.

5

1978699C1

HOSE ASSY.

HOSE ASSEMBLY - 1/2 ID x 185 inch long, with 7/8-14 inch connections, Includes: Ref. 6

2шт.

5

851773C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection, Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch wide (replaces 364885R1)

1шт.

7

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hydraulic hose

1шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER ASSEMBLY, 7/8 NF, Self-Sealing, Male, refer to hydraulic couplers

2шт.

9

373220R1

PLUG

CAP - dust, plastic, no longer available

2шт.

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

2шт.

10

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hydraulic hose

1шт.

1282459C1

PACKAGE

KIT - coupler tag, male coupler ID tag, consists of (4) tag, black (NSS), (4) tag, green (NSS), (4) tag, blue (NSS), instructions (NSS), not show

1шт.
