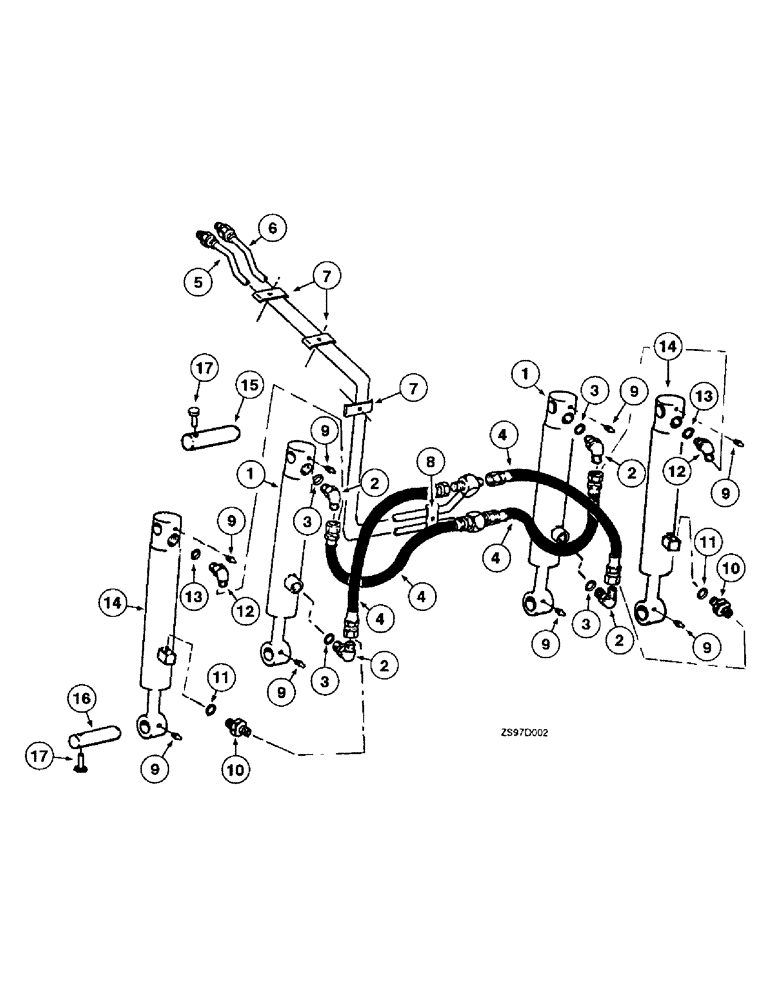

Запчасти Case IH 2250 (2-28) - BUCKET HYDRAULICS, TRACTOR VALVE TO BUCKET CYLINDERS

1

853613C92

CYLINDER

ASSEMBLY - bucket hydraulics parts list Figure 2-53, no longer available,order 1272452C1 cylinder, see below

2шт.

1

1272452C1

CYLINDER,Double Acting, 28.57mm Rod, 466.73mm Stroke

ASSEMBLY - bucket hydraulics, parts list Figure 2-53

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

4

1978704C1

HOSE

ASSEMBLY - 864 mm (34 inch) long, bucket cylinder (replaces 851788C2 and L100703)

4шт.

5

851930C1

HYD TUBE

TUBE ASSEMBLY - bucket dump, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2250C1111, for service order 1, 851576C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

5

851576C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - bucket dump, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2250C1112 or serial no. 501 and above

1шт.

6

851929C1

HYD TUBE

TUBE ASSEMBLY - bucket roll-back, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2250C1111, for service order 1, 851575C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

6

851575C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - bucket roll-back, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2250C1112 or serial no. 501 and above

1шт.

7

851448C1

CLAMP

- hydraulic tube

3шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch (replaces 851843C1)

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

3шт.

8

851729C1

HOSE CLAMP

CLAMP - hose, hydraulic tube

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

9

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

8шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

14

852985C91

CYLINDER

ASSEMBLY - 2-1/4 ID x 18-3/8 stroke, parts list Figure 2-61

1шт.

14

853607C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/4 ID x 18-3/8 stroke, parts list Figure 2-55, no longer available, order 1272454C1 cylinder, see below

2шт.

14

1272454C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/4 ID x 18-3/8 stroke, parts list Figure 2-55

2шт.

15

851444C1

PIN

- pivot, bucket, Serial Range: cylinder-boom

2шт.

16

REF

INSTRUCTION

PIN - bucket cylinder and boom, for service, Serial Range: refer-buckets

4шт.

17

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.
