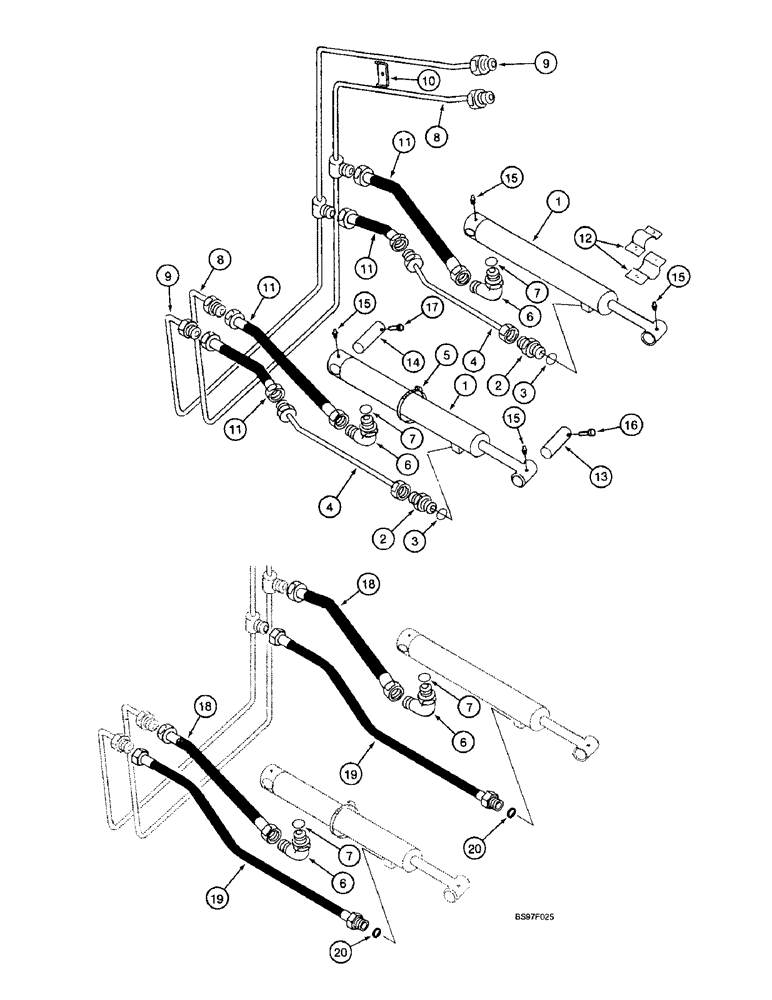

Запчасти Case IH 2250 (2-26) - BOOM HYDRAULICS, TRACTOR VALVE TO BOOM CYLINDERS

1

850912C91

CYLINDER

ASSEMBLY - 2-1/2 ID x 28-3/16 stroke, parts list Figure 2-56, no longer available, order 1272455C91 cylinder, see below

2шт.

Note says split piston note lift cylinder.

1шт.

1

853619C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 ID x 28-3/16 stroke, parts list Figure 2-56, no longer available, order 1272455C91 cylinder, see below

2шт.

Solid piston. Note lift cylinder.

1шт.

1

1272455C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2-1/2 ID x 28-3/16 stroke, parts list Figure 2-58

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), if used, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1), if used

1шт.

4

851933C1

HYD TUBE,12.70 mm OD x 26.7, 6.5 mm L

TUBE ASSEMBLY - boom cylinder, if used

2шт.

5

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, tube (replaces 279029R91)

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

8

851931C1

TUBE

ASSEMBLY - boom raise, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2250C1111, for service order, 1, 851645C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

When going from ref 8 to 8A, 384539R1 is the connector you will need.

1шт.

8

851645C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - boom raise, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2250C1112 or serial no. 501 and above

1шт.

9

851932C1

TUBE

ASSEMBLY - boom lower, with 3/4-16 hydraulic tube nut at boom rear with loader identification plate reading 2250C1111, for service order 1, 851646C1 tube assembly and new connections for recommended hydraulic, Serial Range: hoses-fit

1шт.

For female 7/8 by 3/4 connector use P/N 372852r1.384539r1 has 7/8 male end.

1шт.

9

851646C1

HYD TUBE,.5" OD

TUBE ASSEMBLY - boom lower, with 7/8-14 hydraulic tube nut at boom rear with loader identification plate reading 2250C1112 or serial no. 501 and above

1шт.

10

851448C1

CLAMP

- hydraulic tube

4шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch (replaces 851843C1)

4шт.

11

851789C2

HOSE

- hydraulic, 20-1/2 inches long, boom cylinder, if used

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

12

851382C2

CLAMP

- boom lift cylinder stop, for use with 584, 784 and 844 tractors with four wheel drive

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

4шт.

13

851444C1

PIN

- pivot, boom cylinder to sub frame

2шт.

14

851506C1

PIN

- boom, Serial Range: cylinder-boom

2шт.

15

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

16

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

17

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

18

1978705C1

HOSE ASSY.

HOSE - 559 mm (22 inch) long, if used

2шт.

19

1978715C1

HOSE

- 1372 mm (54 inch) long, if used

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
