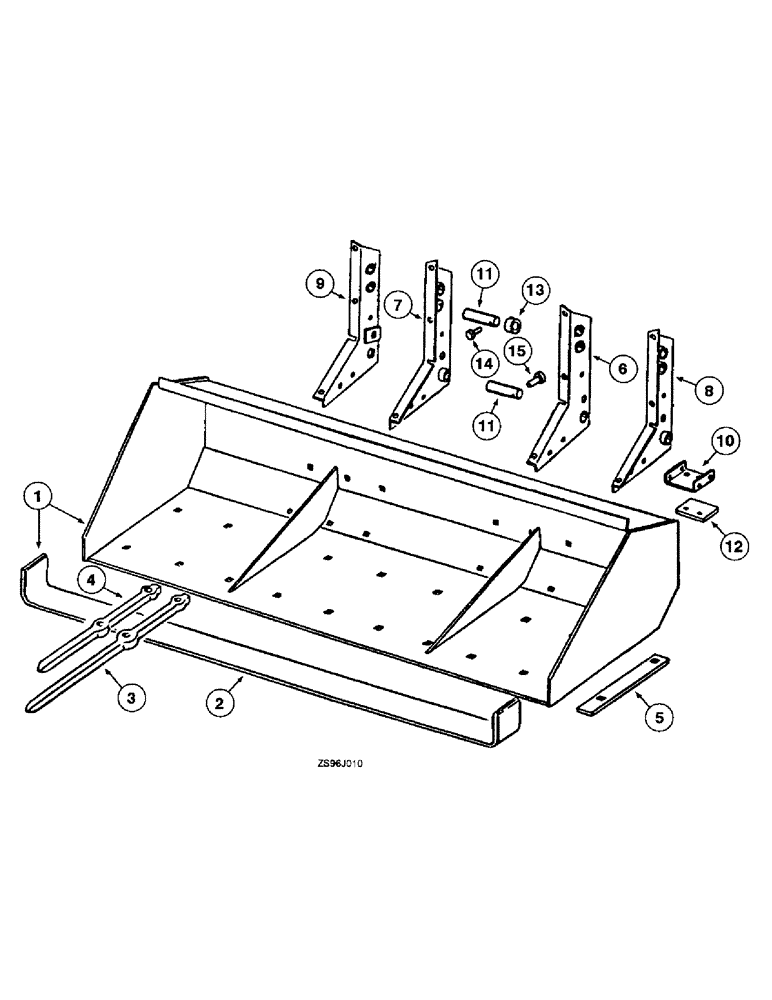

Запчасти Case IH 2250 (2-22) - MATERIAL BUCKET

1

REF

INSTRUCTION

BUCKET ASSEMBLY - 65 inch, material, serviced only as a machine attachment

1шт.

1

REF

INSTRUCTION

BUCKET ASSEMBLY - 84 inch, snow and light material, serviced only as a machine attachment

1шт.

2

851917C1

BLADE

EDGE - cutting, 65 inch

1шт.

2

851806C1

BLADE

EDGE - cutting, 84 inch

1шт.

3

851817C1

TINE

- inner, material bucket, 6 used with 65 inch bucket, 8 used with 84 inch bucket

6-8шт.

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch (replaces 19064R1)

12-16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

12-16шт.

4

851818C1

TINE

- outer, material bucket

2шт.

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch (replaces 19064R1)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

4шт.

5

851807C2

BAR

- bucket wear, 4 used with 65 inch bucket, 6 used with 84 inch bucket

4-6шт.

6

851476C1

SUPPORT

ASSEMBLY - bucket hinge, LH inner

1шт.

7

851918C2

SUPPORT

ASSEMBLY - bucket hinge, RH inner

1шт.

8

851477C1

SUPPORT

ASSEMBLY - bucket hinge, LH outer

1шт.

9

851919C2

SUPPORT

ASSEMBLY - bucket hinge, RH outer

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch (replaces 485734R1)

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

12шт.

10

851922C1

CHANNEL

- bucket stop

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

8шт.

11

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket (replaces 1329594C1)

4шт.

12

851842C1

BAR

- cylinder stop

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (replaces 180175)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

13

162510C1

SPACER,1 3/8" Tube x 7/8"

- 1-1/8 ID x 7/8 inch long, bucket cylinder

4шт.

14

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch, bucket pivot (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

15

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch, cylinder pivot (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.
