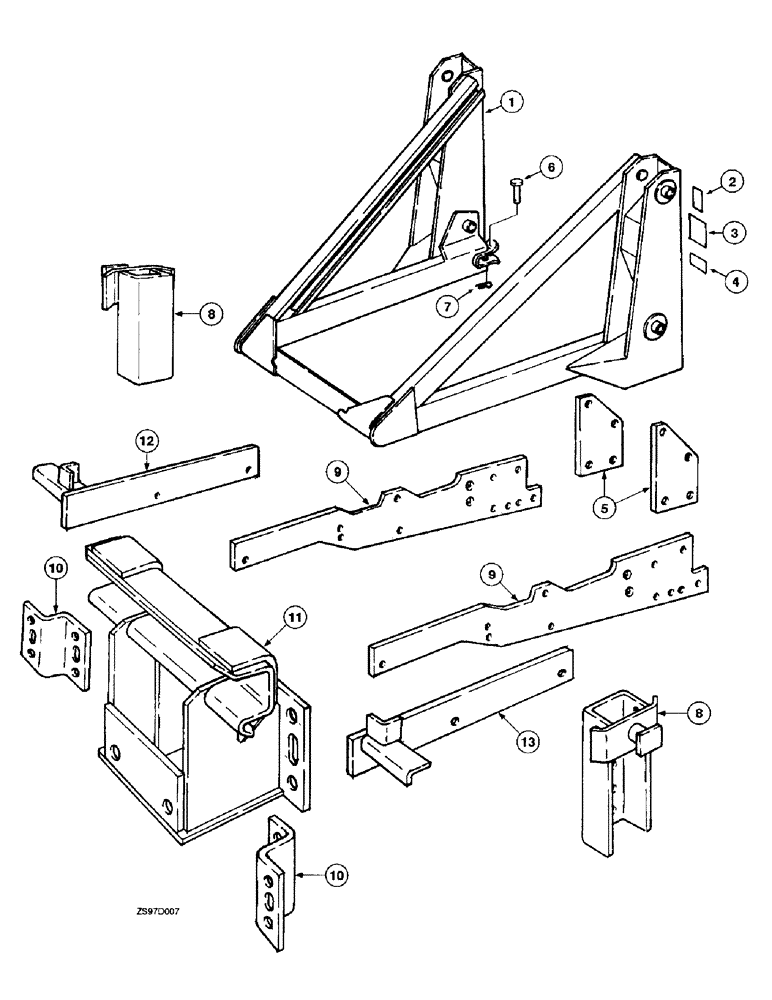

Запчасти Case IH 2250 (2-14) - FRAME AND BRACKETS

1

852962C92

FRAME ASSY

FRAME ASSEMBLY - sub, with decals (replaces 851910C1)

1шт.

2

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

4

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual caution (replaces 1254170R1)

1шт.

5

1329663C1

SPACER

PLATE - spacer

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

14шт.

495-11081

WASHER,3/4", SAE

(Replaces 467750R1) 3/4", SAE

38шт.

6

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch (replaces Q3795)

2шт.

7

1978738C1

HAIR PIN COTTER

3/16", quick attachable (replaces 599744R1)

2шт.

8

1343397C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting rear RH (replaces 851893C1)

1шт.

8

1343396C2

BRACKET

BRACKET ASSEMBLY - sub frame mounting rear LH (replaces 851893C1)

1шт.

9

1343398C2

PLATE

- mounting

2шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (replaces 271769)

8шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

10

1343387C1

BRACKET

- spacer (used for 85/95 series tractor with row Crop Bolster)

2шт.

11

1343388C4

BRACKET

- front mounting

1шт.

12

1343403C1

GUIDE

ASSEMBLY - RH

1шт.

13

1343402C1

GUIDE

ASSEMBLY - LH

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

419-31228

BOLT - plow, 3/4 NC x 1-3/4 inch

2шт.
