Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

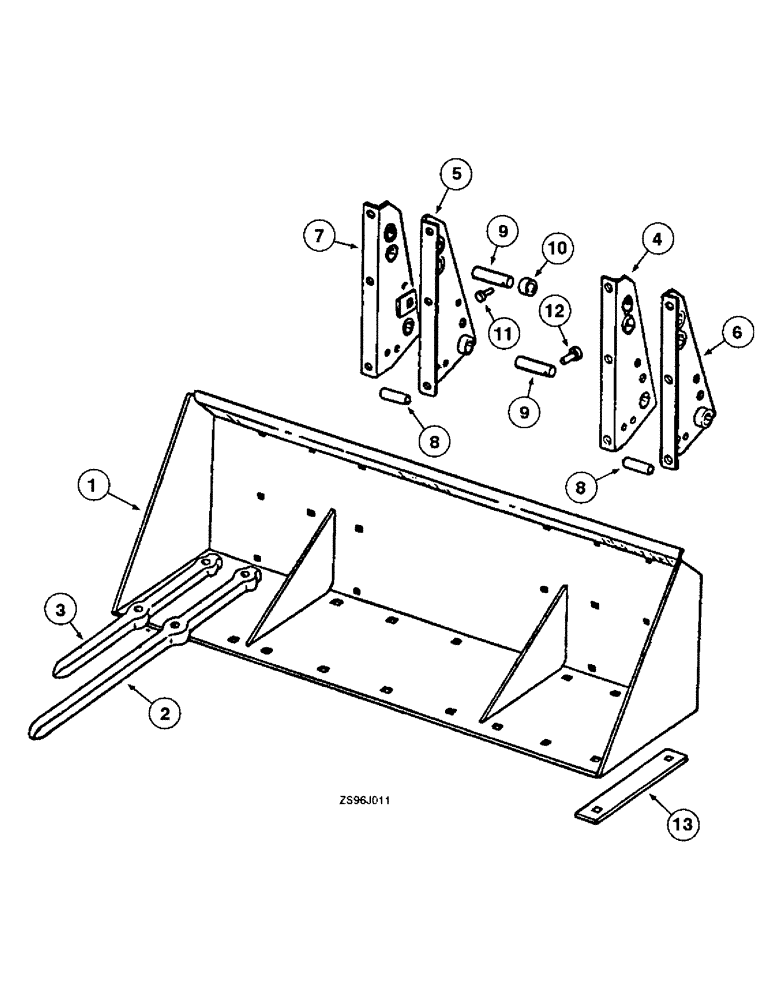

BUCKET ASSEMBLY - 60 inch manure, serviced only as a machine attachment
1шт.
1
REF
INSTRUCTION
BUCKET ASSEMBLY - 72 inch manure, serviced only as a machine attachment
1шт.
2
851425C1
TINE
- inner, 60 inch, manure fork
6шт.
2
851817C1
TINE
- inner, 72 inch, manure fork
8шт.
419-2840
PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5
BOLT - plow 1/2 NC x 2-1/2 inch (replaces 19064R1)
12-16шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex (Replaces 120378) 1/2"-13, G5
12-16шт.
3
851426C1
TINE
- outer, 60 inch, manure fork
2шт.
3
851818C1
TINE
- outer, 72 inch, manure fork
2шт.
419-2840
PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5
BOLT - plow 1/2 NC x 2-1/2 inch (replaces 19064R1)
4шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex (Replaces 120378) 1/2"-13, G5
4шт.
4
851483C1
SUPPORT
ASSEMBLY - bucket hinge, LH inner
1шт.
5
851925C2
SUPPORT
ASSEMBLY - bucket hinge, RH inner
1шт.
6
851484C1
SUPPORT
ASSEMBLY - bucket hinge, LH outer
1шт.
7
851926C2
SUPPORT
ASSEMBLY - bucket hinge, RH outer
1шт.
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
BOLT - carriage, 1/2 NC x 1-1/4 inch (replaces 485734R1)
12шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex (Replaces 120378) 1/2"-13, G5
12шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, (Replaces washer 120384) 1/2"
12шт.
8
U17570
SPACER,1/2" X-Strng Pipe x 4 11/16"
- 35/64 ID x 4-11/16 inch, cylinder stop
2шт.
413-896
BOLT,Hex, 1/2" - 13 x 6", Gr 5
- hex, 1/2 NC x 6 inch (replaces 20546R1)
2шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex (Replaces 120378) 1/2"-13, G5
2шт.
9
1329594C1
PIN,28.57mm OD x 195mm L
- boom and bucket (replaces 851771C1)
4шт.
10
162510C1
SPACER,1 3/8" Tube x 7/8"
- 1-1/8 ID x 7/8 inch long, bucket cylinder
4шт.
11
439-5530
HEADED PIN,5/16" x 1 7/8"
PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)
2шт.
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"
2шт.
12
439-5532
HEADED PIN,5/16" x 2"
PIN - headed, 5/16 x 2 inch (replaces 378484R1)
2шт.
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"
2шт.
13
91331C1
BAR
- bucket wear, 72 inch bucket
6шт.
Выбрано товаров: 27
