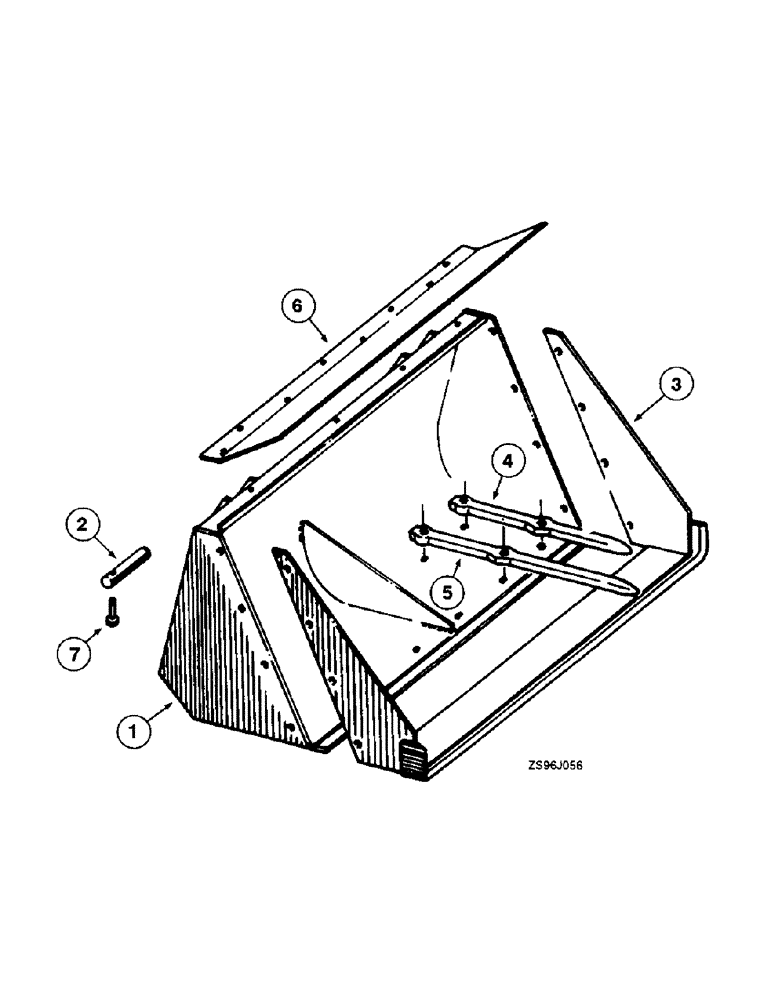

Запчасти Case IH 2200 (6-10) - MANURE BUCKET

1

REF

INSTRUCTION

BUCKET - 50 inch, manure, serviced only as a machine attachment

1шт.

2

851506C1

PIN

- bucket cylinder rod and boom

4шт.

3

851430C1

EXTENSION

- 50 inch, manure bucket

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

8шт.

4

851426C1

TINE

- outer, manure fork

2шт.

118-333

PLOW BOLT,1/2"-13 x 2 1/2", G5

BOLT - plow, 1/2 NC x 2-1/4 inch (replaces 19063R1)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

4шт.

5

851425C1

TINE

- inner, manure fork

4шт.

118-333

PLOW BOLT,1/2"-13 x 2 1/2", G5

BOLT - plow, 1/2 NC x 2-1/4 inch (replaces 19063R1)

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

8шт.

6

851620C1

GUARD

- manure bucket spill

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces 180121) Hex, 3/8"-16 x 7/8", G5, Full Thd

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

8шт.

7

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.
