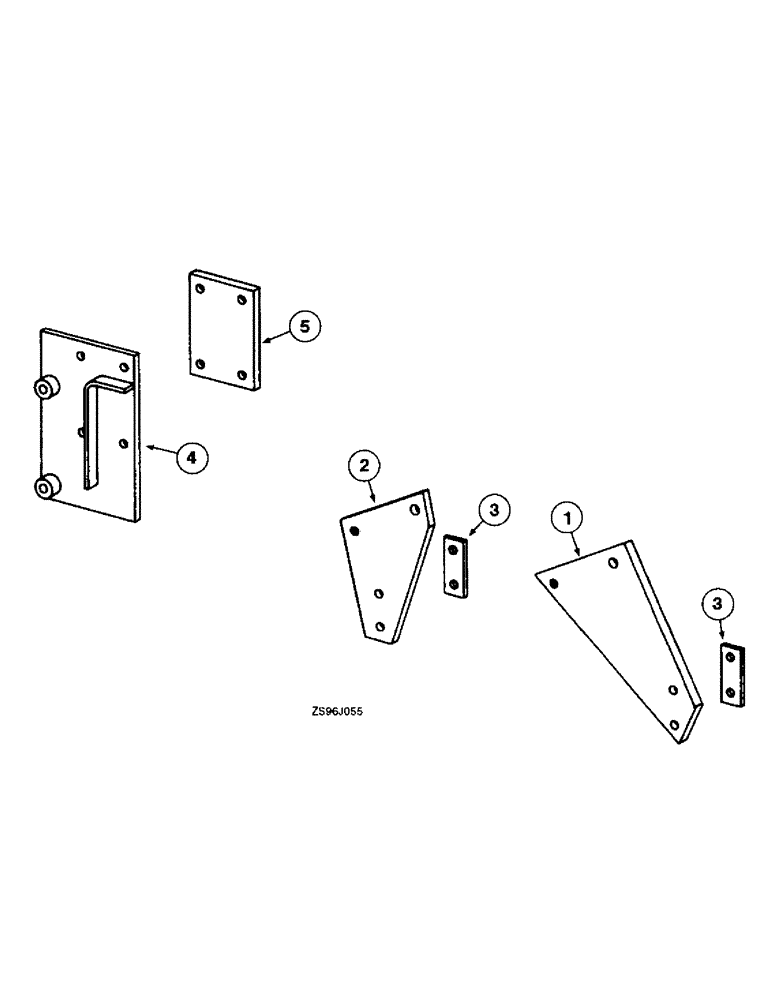

Запчасти Case IH 2200 (6-04) - SUB-FRAME MOUNTING BRACKETS, FOR USE ON I383 AND I483 TRACTORS

1

853465C1

PLATE

- front mounting, I383 tractors

2шт.

2

853466C1

PLATE

- front mounting, I483 tractors

2шт.

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

- hex, 3/4 NC x 8-1/2 inch (replaces 271763)

2шт.

3

853341C1

BAR

- plate spacer

2шт.

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

(replaces 30541R1) Hex, M16 x 50, 8.8

4шт.

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm (Replaces 934185R1)

4шт.

4

853351C1

BRACKET

ASSEMBLY - rear mouting LH

1шт.

4

853352C1

BRACKET

ASSEMBLY - rear mouting RH

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (replaces 271773)

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (replaces 220086)

4шт.

5

853343C1

BAR

- rear bracket spacer

2шт.

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

(replaces 30541R1) Hex, M16 x 50, 8.8

8шт.

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm (Replaces 934185R1)

8шт.
