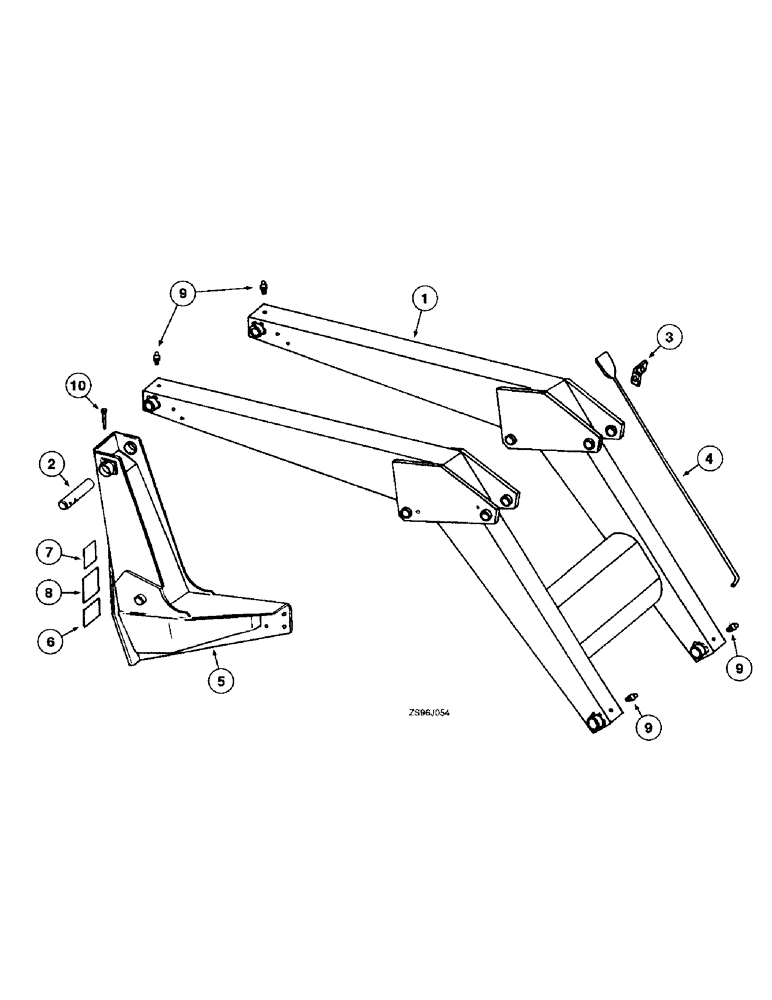

Запчасти Case IH 2200 (6-02) - SUB-FRAME AND BOOM

1

851300C1

BOOM

ASSEMBLY - loader

1шт.

2

1329594C1

PIN,28.57mm OD x 195mm L

- boom pivot (replaces 851338C1)

2шт.

3

851704C1

ANGLE

- indicator support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

4

851335C1

ROD

- bucket indicator

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

1шт.

5

851306C1

FRAME

ASSEMBLY - sub RH, Includes: Ref. 6 - 8

1шт.

5

852961C92

FRAME ASSY

FRAME ASSEMBLY - sub LH, with decals (replaces 851305C1)

1шт.

6

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual, caution (replaces 1254170C1)

1шт.

7

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

8

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch, used on I454, I464, I474, I484, I574 and I584 tractors (replaces 271767)

4шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch, used on I383 and I483 tractors (replaces 271769)

4шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer 131046) 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC used on I383 and I483 tractors (replaces 220086)

2шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch (replaces 273355)

4шт.

10

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.
