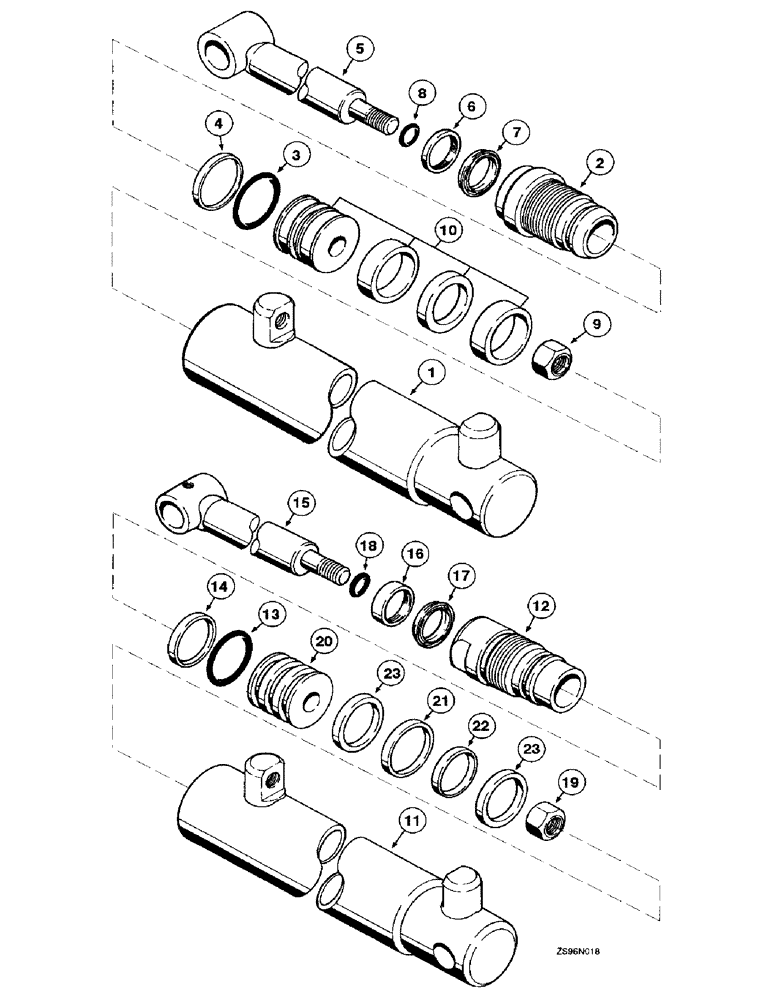

Запчасти Case IH 2200 (6-44) - WELDED DOUBLE ACTING CYLINDERS, 2 ID X 28-11/16 INCH STROKE

850782C92

CYLINDER

ASSEMBLY - 2 ID x 28-11/16 stroke, 3/4 -16 inch ports, no longer available, order 1272453C1 cylinder assembly, see below, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder assembly

1шт.

2

850786C2

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 85111C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 85111C2

1шт.

5

850784C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 85111C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 85111C2

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 85111C2

1шт.

9

232-46114

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF (replaces 131-1252)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with required seals

1шт.

Part of seal kit P/N 85111C2

1шт.

85111C2

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 8 and 10

1шт.

1272453C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 ID x 28-11/16 stroke, 3/4 -16 inch ports, Includes: Ref. 11 - 23

1шт.

11

1340892C1

CYLINDER

TUBE - cylinder, 2 ID x 28-11/16 '' stroke

1шт.

12

1340893C1

HEAD

GLAND - cylinder, 2 ID x 28-11/16 '' stroke

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

15

1340894C1

STEM

ROD - piston, 2 ID x 28-11/16 '' stroke

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

19

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, , 2 ID x 28-11/16'' stroke 3/4"-16, GC

1шт.

20

1340890C1

PISTON

- cylinder, 2 ID x 28-11/16 '' stroke

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup, piston seal, 2 ID x 28-11/16 '' stroke

1шт.

Part of seal kit P/N 1340895C1

1шт.

23

NSS

NOT SOLD SEPARAT

RING - wear, piston, 2 ID x 28-11/16 '' stroke

2шт.

Part of seal kit P/N 1340895C1

1шт.

1340895C1

SEAL KIT

- seal, Includes: Ref. 13, 14 16 - 18 and 21 - 23, 2 ID x 28-11/16 '' stroke

1шт.
