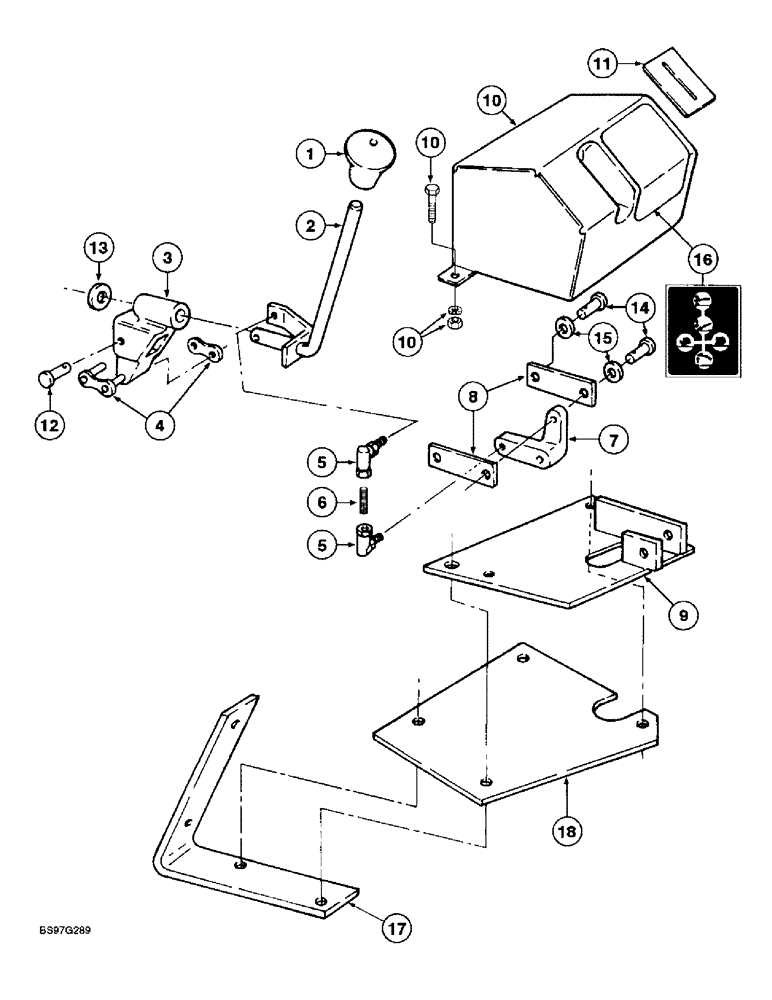

Запчасти Case IH 2200 (6-38) - DUAL SINGLE LEVER CONTROLS, FOR USE WITH EXTERNAL LOADER CONTROL VALVE

1

53717DA

BUTTON

KNOB - dual control lever

1шт.

2

851371C1

LEVER

ASSEMBLY - dual control

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (replaces 178374R1)

1шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces 103374) 3/32" x 1"

1шт.

3

851373C1

LEVER

- boom control

1шт.

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2 (replaces 21879R1)

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

4

36640

DRAG LINK

LINK - boom control lever (replaces 635714R91)

1шт.

5

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, 1/4 inch NF (replaces 27258R1)

2шт.

6

851378C1

STUD

- bucket control ball joint

1шт.

425-114

NUT,1/4"-28, G5

(Replaces 120367) 1/4"-28, G5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

7

851375C1

LEVER

- bucket control

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

2шт.

8

851370C1

BAR

- bucket control link

2шт.

439-1416

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch, grade 2 (replaces 21886R1)

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch (replaces 21801R1)

4шт.

9

851395C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - dual control lever (replaces 851395C1)

1шт.

10

851384C2

COVER ASSY

COVER ASSEMBLY - dual control lever (replaces 851384C1)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (Replaces 180020)

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (replaces 120375)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

1шт.

11

851389C1

PAD

- dual control lever slot sealing

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2 (replaces 21879R1)

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

1шт.

13

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (replaces 178374R1)

1шт.

14

439-1416

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch, grade 2 (replaces 21886R1)

2шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

2шт.

15

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch (replaces 21801R1)

4шт.

16

851390C1

PRODUCT GRAPHIC

DECAL - control valve

1шт.

17

230674A1

BRACKET

- valve mounting

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

281-54820

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

18

144998A1

PLATE

- valve mounting

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.
