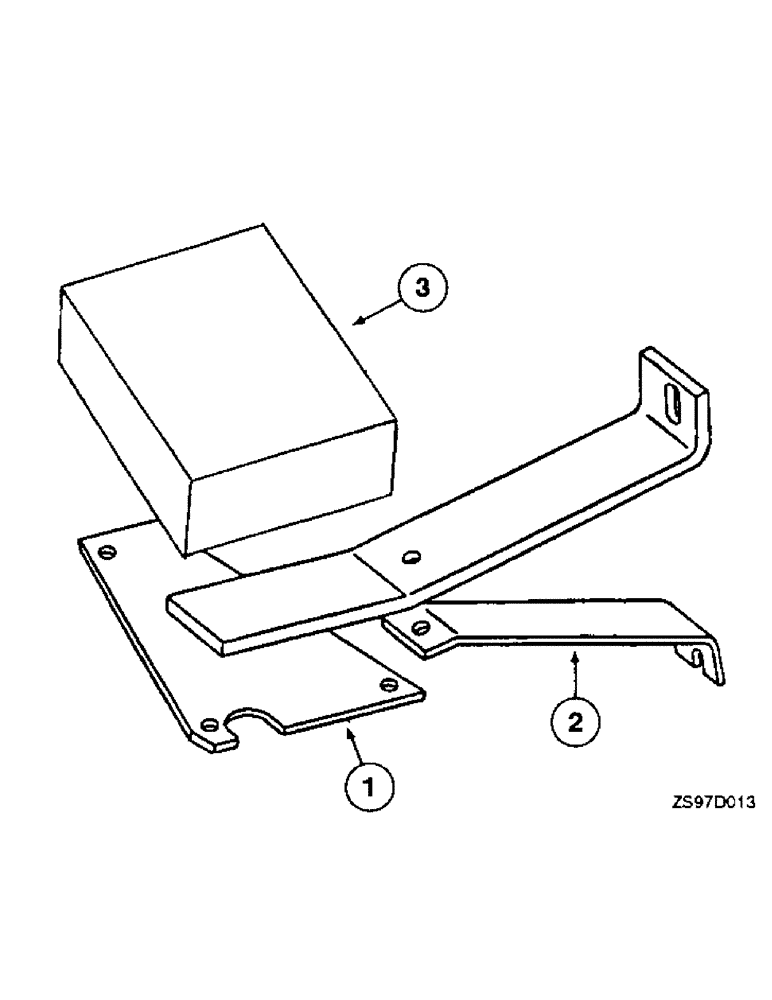

Запчасти Case IH 2200 (6-34) - VALVE MOUNTING AND SUPPORT, FOR USE WITH EXTERNAL LOADER CONTROL VALVE

1

851336C2

SUPPORT

ASSEMBLY - valve (replaces 851336C1)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

2

851315C1

SUPPORT

- reinforcing

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch (replaces 851843C1)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces 120214) 5/16"

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (replaces 619855R1)

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, Gresen, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, For use with one lever dual valve controls (Replaces 180132)

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, For use with one lever dual valve controls (Replaces 180134)

2шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, For use with two lever valve control and one lever dual valve controls (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.
