Запчасти Case IH 2200 (6-32) - HYDRAULIC QUICK DISCONNECT ATTACHMENT, FOR USE WITH EXTERNAL LOADER CONTROL VALVE

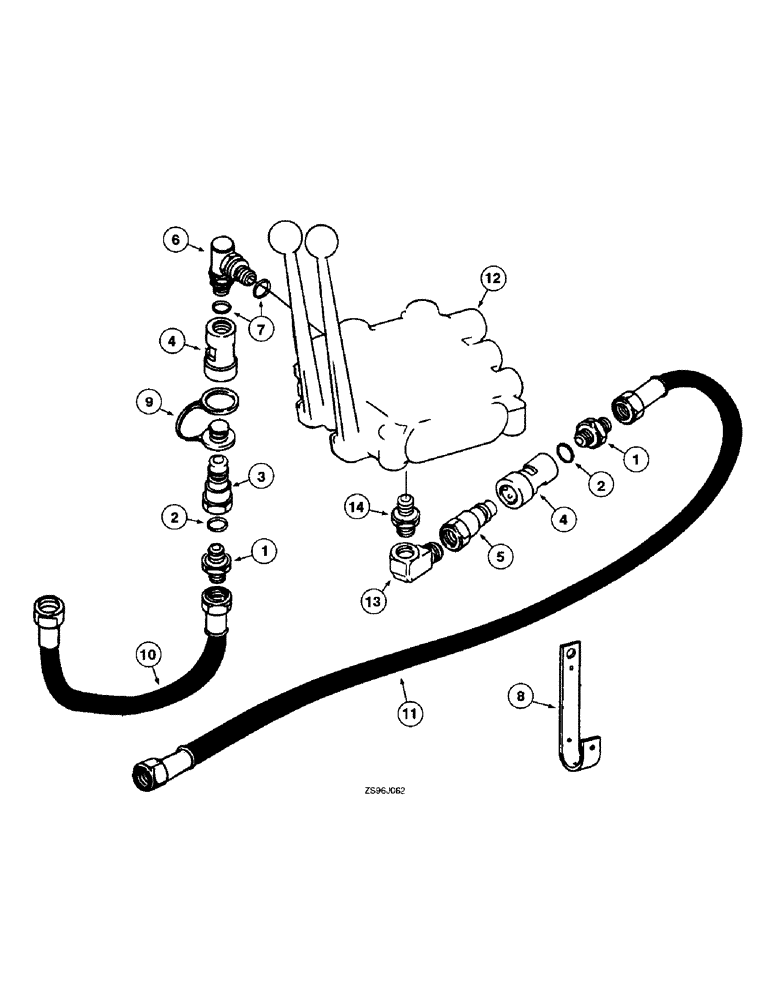

Схема запчастей Case IH 2200 - (6-32) - HYDRAULIC QUICK DISCONNECT ATTACHMENT, FOR USE WITH EXTERNAL LOADER CONTROL VALVE
2
1
9
7
14
5
1
11
3
2
8
4
10
4
6
13
12

Артикул

Название

Примечание

Количество

1

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (replaces 9410204), Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

3

REF

INSTRUCTION

COUPLER ASSEMBLY - self-sealing, male, pressure hose, refer to hydraulic couplers

1шт.

4

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female, 7/8-14 inch, self-sealing female, ISO standard, for use with1272399C2 (replaces 395150R91)

1шт.

5

1272770C2

COUPLING, BREAK AWAY

COUPLING - quick disconnect, self-sealing, male, return hose (replaces 395151R1)

1шт.

6

D48874

ELBOW

- valve assembly, hydraulic control (replaces 476940R1), Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

8

851637C1

SUPPORT

- lift cylinder lock, for retaining cylinders when loader is disconnected

2шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch (replaces 189295)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

4шт.

9

373220R1

PLUG

- dust, plastic

1шт.

9

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

1шт.

10

851625C91

HOSE

- pressure, 58 inch long

1шт.

11

850738C91

HOSE

- return, 66 inch long

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, Gresen, refer to hydraulic control valve

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces 180132)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

13

444044

ELBOW,90 Degree, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

- valve assembly, hydraulic control

1шт.

14

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - valve assembly, hydraulic control (replace 443982)

1шт.
