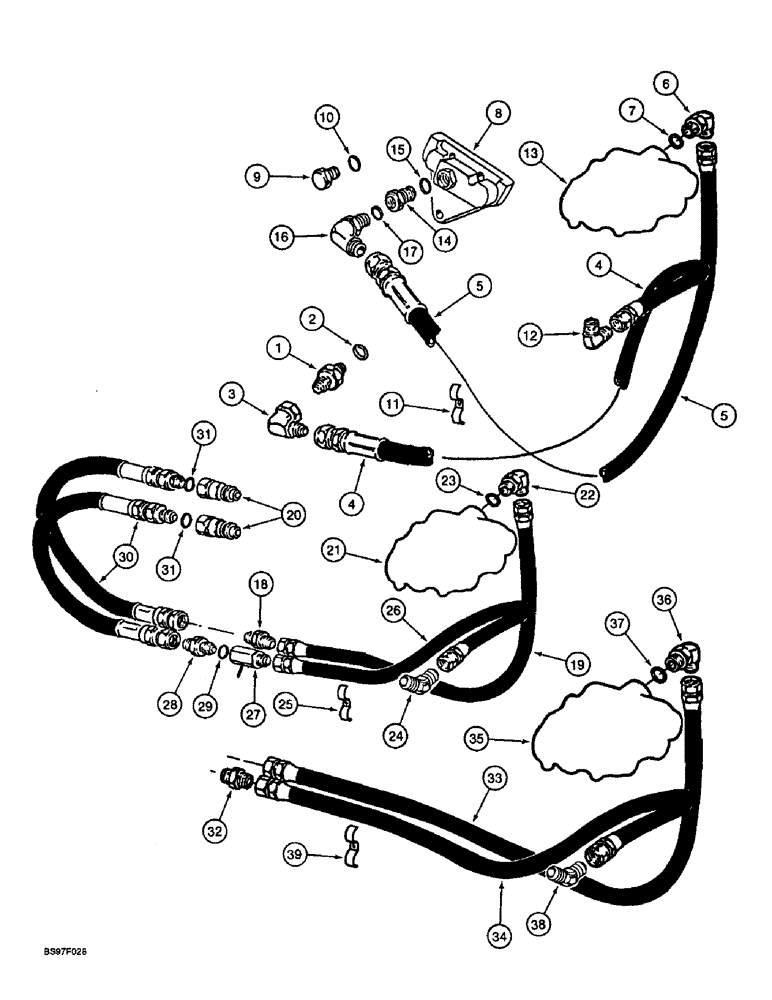

Запчасти Case IH 2200 (6-24) - HYDRAULICS, EXTERNAL CONTROL

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss (replaces 222648H1), Includes: Ref. 2

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide (replaces 296247R1)

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel (Replaces 9410282)

1шт.

4

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

5

1978700C2

HOSE

- tractor to control valve pressure line, 58 inch long (replaces 851625C91)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978)

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

8

3123527R91

COVER ASSY

COVER ASSEMBLY - tractor valve bank, Includes: Ref. 9 & 10

1шт.

9

3123528R1

PLUG

- power beyond port

1шт.

10

708496R1

SEAL

- plug

1шт.

11

379045R1

CLAMP

- hose, hydraulic, dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.

12

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- flared tube, 90 degree (replaces 9402866)

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

14

3118797R1

ADAPTER

ADAPTOR - power beyond

1шт.

15

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

(Replaces 383024R1) -017, 90 Duro, .676" ID x .070" Thk

1шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss (replaces 671942R1), Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

18

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - 5/8-16 inch flared (replaces 9402788)

1шт.

19

1978700C2

HOSE

- tractor to control valve pressure line, 58 inch long (replaces 851625C91)

1шт.

20

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, for service parts refer to hydraulic control valve

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

24

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- flared tube, 45 degree (replaces 9402866)

1шт.

25

379045R1

CLAMP

- hose, hydraulic, dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.

26

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

27

395551R92

VALVE

CHECK VALVE - return line

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (replaces 9410204), Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

30

REF

INSTRUCTION

HOSE ASSEMBLY - 1/2 ID x 22 inch long, recommended hydraulics

2шт.

For service on loader valve extension hose to tractor valve, order SAE 100R2 two wire braid with 7/8-14 J.I.C. female swivel at one end and 7/8-14 male fixed o-ring boss at opposite end.

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

2шт.

32

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - 5/8-16 inch, flared (replaces 9402788)

1шт.

33

1978700C2

HOSE

- tractor to control valve pressure line, 58 inch long (replaces 851625C91)

1шт.

34

850738C91

HOSE

- tractor to control valve return line, 66 inch long

1шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, refer to hydraulic control valve

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss (replaces 9410978), Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

38

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- flared tube, 45 degree (replaces 9402866)

1шт.

39

379045R1

CLAMP

- hose, hydraulic, dual

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (replaces 180042)

1шт.
