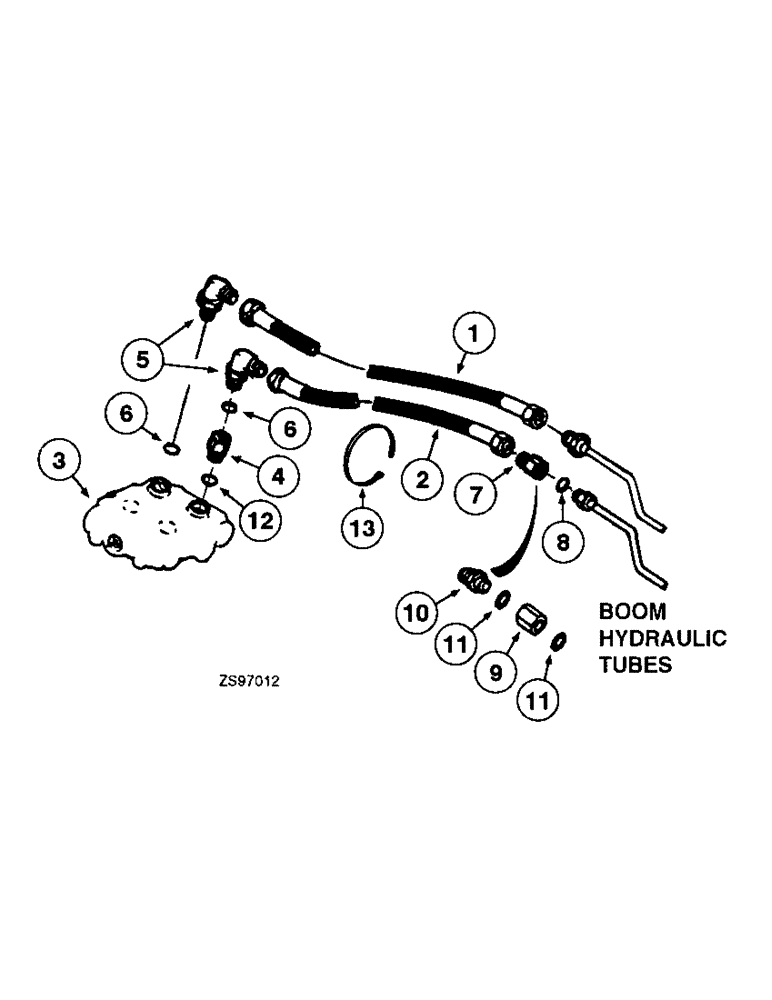

Запчасти Case IH 2200 (6-22) - HYDRAULICS, EXTERNAL VALVE

1

851345C1

HOSE

ASSEMBLY - boom lower, 23 inch long, Serial Range: 1978-1981

1шт.

1

853338C1

HOSE

- boom lower, 28 inch long, 1982 and after

1шт.

2

851346C1

HOSE

ASSEMBLY - boom raise, 20 inch long, Serial Range: 1978-1982

1шт.

2

853328C1

HOSE

- boom raise, 27 inch long, 1982 and after

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, Gresen, refer to hydraulic control valve

1шт.

4

675453R91

VALVE

RESTRICTOR ASSEMBLY - oil flow, Serial Range: 1978-1981

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

7

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - oil flow, 1982 and after

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

9

584802R1

CONNECTOR, ELEC

UNION - straight, Serial Range: 1978-1981

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, 1978 to 1981 (replaces 9410204), Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 1978 to 1981 (Replaces 364885R1)

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1978 to 1981 (Replaces 570828R1)

1шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hydraulic hose

1шт.
