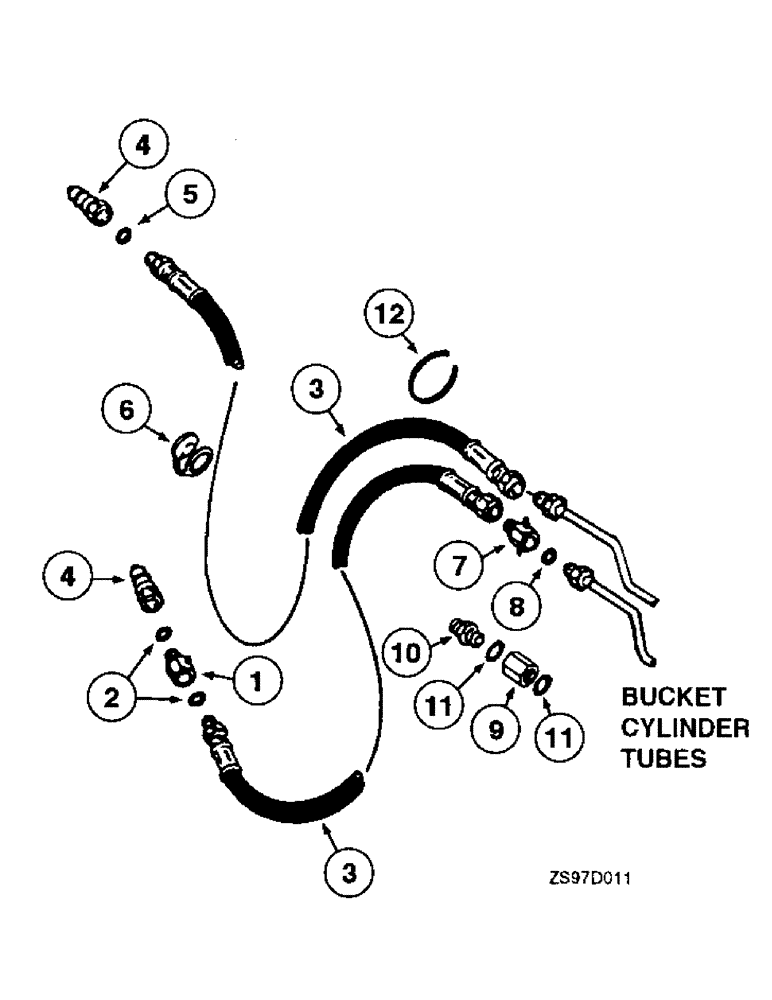

Запчасти Case IH 2200 (6-20) - HYDRAULICS, REAR MOUNT

1

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - oil flow, Serial Range: 1978-1981

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

3

REF

INSTRUCTION

HOSE ASSEMBLY - 1/2 ID x 130 inch long, recommended hydraulic

2шт.

For service on I454, I464, I474, I484, I574 and I584 tractors using tractor valve for loader control, order SAE 100R2 two wire braid with 7/8 J.I.C. female swivel at one end and 7/8-14 J.I.C. and 7/8-14 male fixed O-ring boss at opposite end, for service order 851347C1 hose assembly

1шт.

3

851347C1

HOSE

ASSEMBLY - 1/2 ID x 130 inch long, 7/8-14 male fixed O-ring boss-one end

2шт.

4

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing male, 7/8 inch NF, poppet type (replace 395149R1)

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

6

373220R1

PLUG

CAP - dust, plastic

2шт.

6

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replace 401757R11)

2шт.

7

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - oil flow, 1982 and after

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 1982 and after (Replaces 364885R1)

1шт.

9

584802R1

CONNECTOR, ELEC

UNION - straight

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (replaces 9410204)

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

12

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hydraulic hose

1шт.

1282459C1

PACKAGE

KIT - coupler tag, not shown

1шт.
