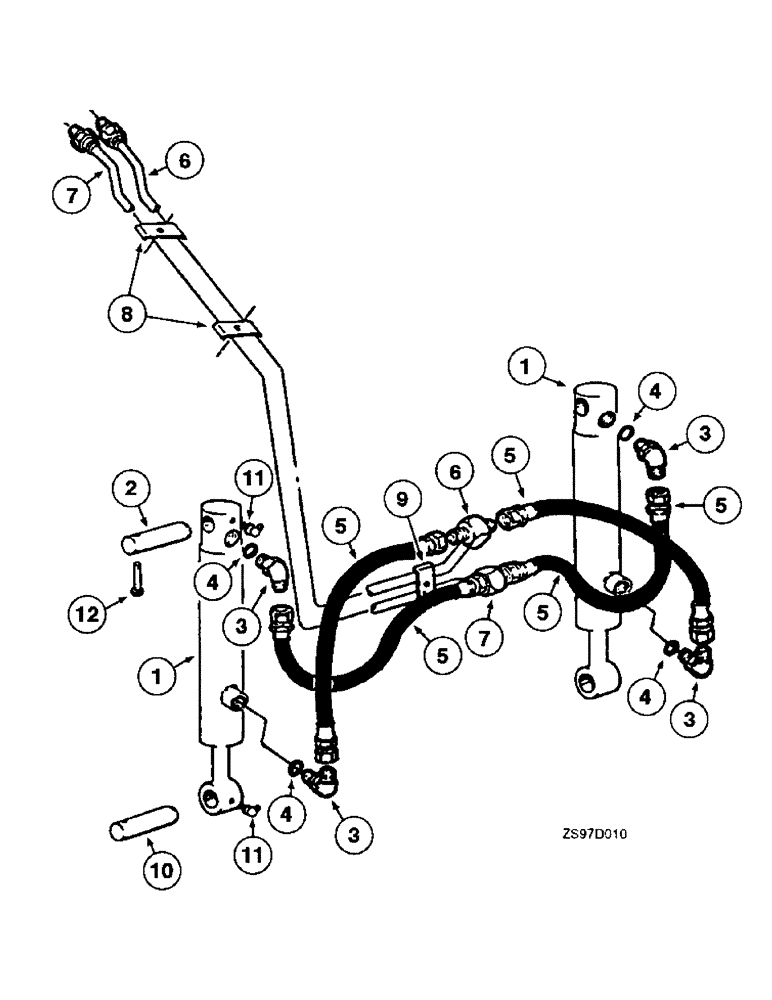

Запчасти Case IH 2200 (6-18) - BUCKET HYDRAULICS, LOADER VALVE TO BUCKET CYLINDERS

1

853613C92

CYLINDER

ASSEMBLY - bucket hydraulics parts list Figure 6-43, no longer available, order 1272452C1 cylinder, see below

2шт.

1

1272452C1

CYLINDER,Double Acting, 28.57mm Rod, 466.73mm Stroke

ASSEMBLY - bucket hydraulics, parts list Figure 6-43

2шт.

2

675264R1

SHAFT

PIN - bucket, Serial Range: cylinder-boom

2шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 4

4шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570885R1)

1шт.

5

1978695C1

HOSE

- 610mm (24 inch) long, bucket cylinder (replaces 675846R91and 131129H1)

4шт.

6

851320C1

TUBE

ASSEMBLY - bucket rollback, 1978 to 1981, order the following

1шт.

853339C1

TUBE,.5" OD

- bucket rollback,1982 and after (replaces 851320C1)

1шт.

853328C1

HOSE

- bucket rollback, 27 inch long, 1982 and after

1шт.

7

851319C1

TUBE

ASSEMBLY - bucket dump, 1978 to 1981, order the following

1шт.

853347C1

TUBE,.5" OD

- bucket dump, 1982 and after (replaces 851319C1)

1шт.

853338C1

HOSE

- bucket dump, 28 inch long, 1982 and after

1шт.

8

851448C1

CLAMP

- hydraulic tube

2шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch (replaces 851843C1)

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

2шт.

9

851729C1

HOSE CLAMP

CLAMP - hose, hydraulic tube

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

1шт.

10

REF

INSTRUCTION

PIN - bucket cylinder rod and boom, for service, Serial Range: refer-buckets

4шт.

11

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

12

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened (Replaces 103348)

2шт.
