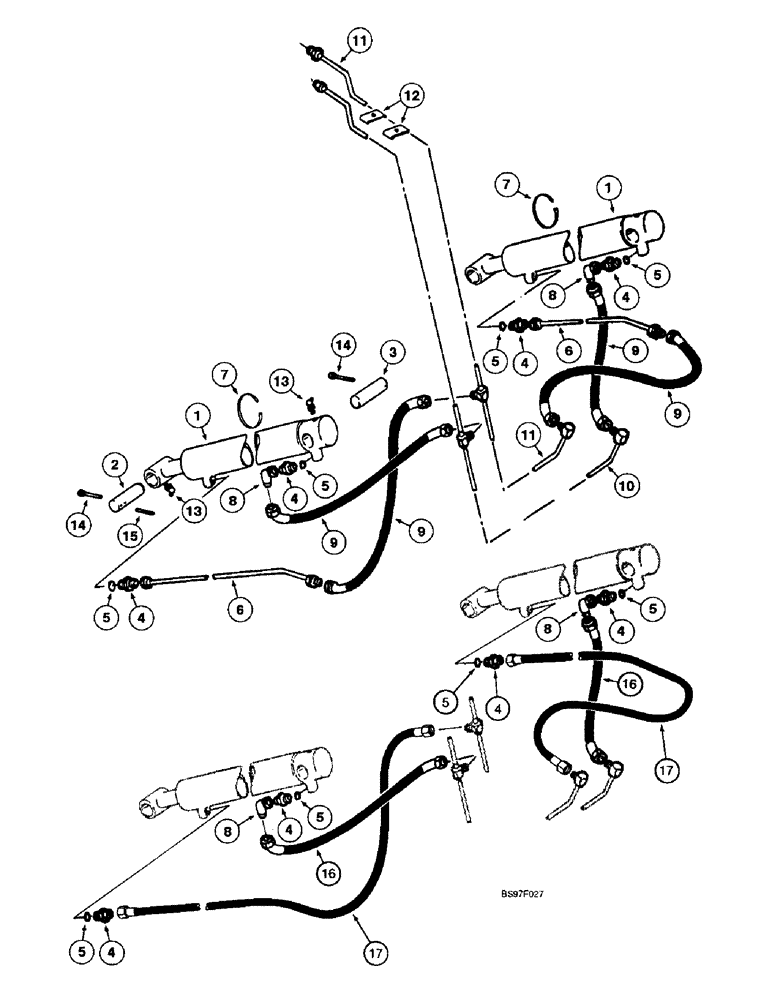

Запчасти Case IH 2200 (6-16) - BOOM HYDRAULICS, LOADER VALVE TO BOOM CYLINDERS

1

850782C92

CYLINDER

ASSEMBLY - 2 ID x 28-11/16 stroke, parts list Figure 6-44, no longer available, order 1272453C1 cylinder, see below

2шт.

1

1272453C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 ID x 28-11/16 stroke, parts list Figure 6-44

2шт.

2

1329594C1

PIN,28.57mm OD x 195mm L

- boom cylinder to sub-frame (replaces 851338C1)

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

1шт.

3

675264R1

SHAFT

PIN - boom, Serial Range: cylinder-boom

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 5

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

6

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

Boom Cylinder to Cylinder Lower Port (Replaces 851321C1) if Used 12.70 mm ID x 1195.00 mm, SAE 100R1

2шт.

7

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, tube (replaces 279029R91)

2шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel (Replaces 9410281)

2шт.

9

851789C2

HOSE

- hydraulic, 20-1/2 inches long, boom cylinder, if used

4шт.

10

851317C1

TUBE

ASSEMBLY - boom raise, 1978 to 1981, order the following

1шт.

853340C1

TUBE,.5" OD

- boom raise, 1982 and since (replaces 851317C1)

1шт.

853328C1

HOSE

- boom raise, 27 inch long, 1982 and after

1шт.

584802R1

CONNECTOR, ELEC

UNION - straight

1шт.

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss (replaces 9410204), Include: o-ring

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

11

851318C1

TUBE

ASSEMBLY - boom lower, 1978 to 1981, order the following

1шт.

853346C1

TUBE,.5" OD

- boom raise, 1982 and after (replaces 851318C1)

1шт.

853338C1

HOSE

- boom lower, 28 inch long, 1982 and after

1шт.

12

851448C1

CLAMP

- hydraulic tube

2шт.

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch (replaces 851843C1)

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1) 3/8" x 1" x .063"

2шт.

13

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.

14

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.

15

19356R1

PIN,3/8" x 3", Coiled

2шт.

16

1978705C1

HOSE ASSY.

HOSE - 559 mm (22 inch) long, if used

2шт.

17

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

if used 12.70 mm ID x 1195.00 mm, SAE 100R1

2шт.
