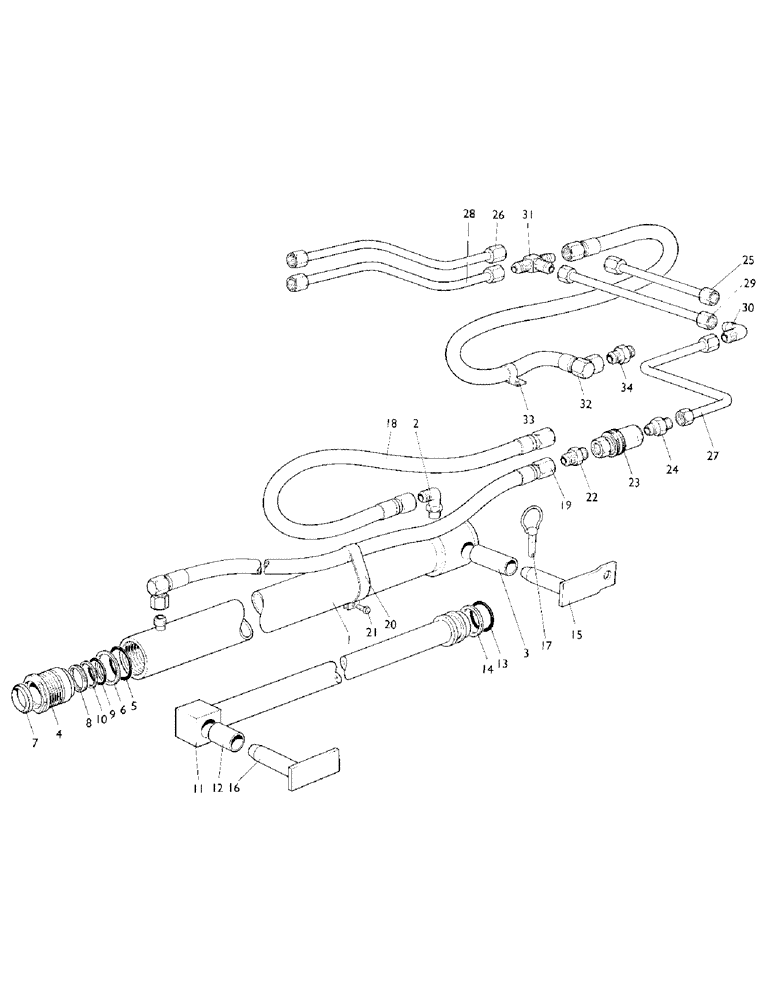

Запчасти Case IH LF-SERIES (14) - BOOM LIFT RAMS, DOUBLE ACTING, LF12 MODEL 1212, 1210, LF9 MODEL 996, 995, 990), LF8 MODEL 885

K772704

CYLINDER

RAM CYLINDER ASSEMBLY, 42 x 2-1/4 x 34 in. (Double-acting), LF12 (1212, 1210)

2шт.

K772235

CYLINDER

RAM CYLINDER ASSEMBLY, 37-3/4 x 2-1/4 x 30 in. (Double-acting), LF9 (996-5, 990)

2шт.

K772718

CYLINDER

RAM CYLINDER ASSEMBLY, 32 x 2-1/4 x 23 in. (Double-acting), LF8 (885)

2шт.

1

K772705

CYLINDER BLOCK

RAM CYLINDER CASE, LF12 (1212, 1210)

1шт.

1

K772236

SPARE PART

RAM CYLINDER CASE, LF9 (996-5, 990)

1шт.

1

K772719

SPARE PART

RAM CYLINDER CASE, LF8 (885)

1шт.

2

K622114

FITTING

ELBOW, 3/4 UNF

1шт.

3

K691788

SPARE PART

TENSION BUSH - ram case

1шт.

4

K772217

SLEEVE

1шт.

5

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING, 2 in. int. dia.

1шт.

6

K691545

RING

LEATHER RING, 2 in. int. int. dia.

1шт.

7

K691842

SCRAPER

SEAL, 1-1/2 in. int. dia.

1шт.

8

K691544

SEAL

ING RING, 1-1/2 in. int. dia.

1шт.

9

K24744

O-RING,1.475" ID x 1.895" OD x 0.21"

"O" RING, 1-1/2 in. int. dia.

1шт.

10

K24743

RING

LEATHER RING, 1-1/2 in. int. dia.

1шт.

11

K772708

ROD

PISTON AND ROD, 41-1/4 in., LF12 (1212, 1210)

1шт.

11

K772240

ROD

PISTON AND ROD, 38 in., LF9 (996-5, 990)

1шт.

11

K772722

ROD

PISTON AND ROD, 31-1/4 in., LF8 (885)

1шт.

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING, 3/4 in. int. dia. - piston rod

1шт.

12

K691296

BUSHING

TENSION BUSH - piston rod

1шт.

13

K24840

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O" RING, 1-7/8 in. int. dia.

1шт.

14

K24841

RING

LEATHER RING, 1-7/8 in. int. dia.

2шт.

K690961

PIN

SPRING PIN, 6.5 x 38 MM - piston

1шт.

15

K771253

RAWPLUG

PIVOT PIN - ram case

2шт.

16

K771249

PIN

PIVOT PIN - ram rod

2шт.

17

K691509

PIN

LINCH PIN AND RING

4шт.

18

K769467

HOSE

PIPE, 3/4 UNF x 20 in., LF12 (1212, 1210), LF9 (996-5, 990)

2шт.

18

K772741

HOSE

PIPE, 3/4 UNF x 17 in., LF8 (885)

2шт.

19

K771755

PIPE

3/4 UNF x 46 in., LF12 (1212, 1210)

2шт.

19

K759667

HOSE

PIPE, 3/4 UNF x 43-1/2 in., LF9 (996-5, 990)

2шт.

19

K772740

PIPE

3/4 UNF x 32 in., LF8 (885)

2шт.

20

K773410

CLIP

- arm pipes

2шт.

21

K602735

SCREW

SETSCREW, 1/4 UNC x 3/4 in.

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

K607043

NUT

1/4 UNC

2шт.

22

K690908

FITTING

UNION, 1/2 BSP - 3/4 UNF

4шт.

23

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING

4шт.

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING, 3/4 in. int. dia.

4шт.

24

K691847

FITTING

UNION, 1/2 BSP - 3/4 UNF

4шт.

K774025

CONDUIT

STEEL PIPE, left-hand, LF12 (1212, 1210), boom raise

1шт.

25

K763788

HOSE

PIPE, 3/4 UNF x 20 in., centre, LF12 (1212, 1210), boom raise

1шт.

25

K773130

CONDUIT

STEEL PIPE, centre, LF9 (996-5, 990), boom raise

1шт.

25

K773131

CONDUIT

STEEL PIPE, centre, LF8 (885), boom raise

1шт.

26

K774027

CONDUIT

STEEL PIPE, right-hand, LF12 (1212, 1210), boom raise

1шт.

26

K772779

CONDUIT

STEEL PIPE, right- and left-hand, LF9 (996-5, 990), boom raise

2шт.

26

K772744

CONDUIT

STEEL PIPE, right- and left-hand, LF8 (885), boom raise

2шт.

27

K774025

CONDUIT

STEEL PIPE, left-hand, LF12 (1212, 1210), boom lower

1шт.

27

K772779

CONDUIT

STEEL PIPE, right- and left-hand, LF9 (996-5, 990), boom lower

2шт.

27

K772736

CONDUIT

STEEL PIPE, left-hand, LF8 (885), boom lower

1шт.

28

K774027

CONDUIT

STEEL PIPE, right-hand, LF12 (1212, 1210), boom lower

1шт.

28

K772738

CONDUIT

STEEL PIPE, right-hand, LF8 (885), boom lower

1шт.

29

K763788

HOSE

PIPE, 3/4 UNF x 20 in., centre, LF12 (1212, 1210), boom lower

1шт.

29

K773130

CONDUIT

STEEL PIPE, centre, LF9 (996-5, 990), boom lower

1шт.

30

K691891

FITTING

ELBOW, 3/4 UNF, LF9 (996-5, 990)

2шт.

30

K691891

FITTING

ELBOW, 3/4 UNF, LF8 (885)

1шт.

31

K622160

FITTING

TEE-PIECE, 3/4 UNF

2шт.

32

K759669

HOSE

PIPE, 3/4 UNF - 52-1/2 in., LF12 (1212, 1210)

2шт.

32

K771755

PIPE

3/4 UNF x 46 in., LF9 (996-5, 990)

2шт.

33

K691502

CLIP

- pipes to gearbox cover, LF12 (1212, 1210), LF9 (996-5, 990)

4шт.

34

K690907

FITTING

UNION, 3/4 UNF, pipes to tractor, LF12 (1212, 1210), LF9 (996-5, 990)

2шт.

K623591

O-RING

"O" RING, 3/4 in. int. dia., pipes to tractor, LF12 (1212, 1210), LF9 (996-5, 990)

2шт.
