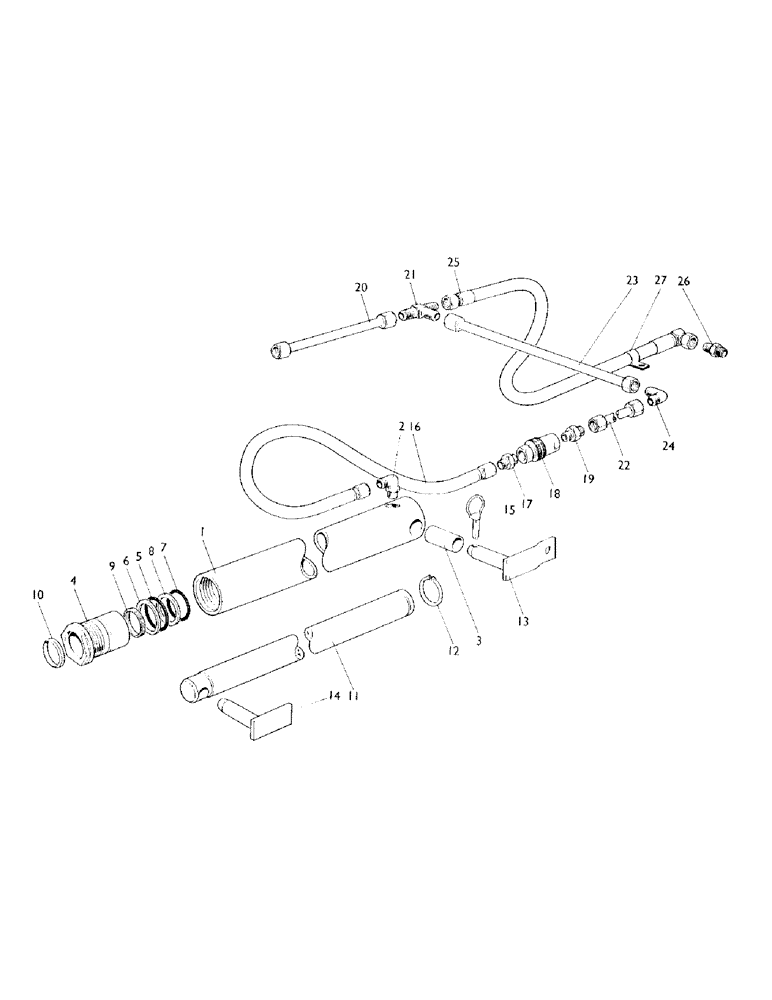

Запчасти Case IH LF-SERIES (12) - BOOM LIFT RAMS, SINGLE ACTING, LF12 MODEL 1212, 1210, LF9 MODEL 996, 995,990, LF8 MODEL885

K772714

CYLINDER

RAM CYLINDER ASSEMBLY, 42 x 2 x 34 in. (Single-acting), LF12 (1212, 1210)

2шт.

K772233

CYLINDER

RAM CYLINDER ASSEMBLY, 37-3/4 x 2 x 30 in. (Single-acting), LF9 (996-5, 990)

2шт.

K772726

CYLINDER

RAM CYLINDER ASSEMBLY, 32 x 2 x 23 in. (Single-acting), LF8 (885)

2шт.

1

K772715

CYLINDER

RAM CYLINDER CASE, LF12 (1212, 1210)

1шт.

1

K772234

SPARE PART

RAM CYLINDER CASE, LF9 (996-5, 990)

1шт.

1

K772727

SPARE PART

RAM CYLINDER CASE, LF8 (885)

1шт.

2

K622114

FITTING

ELBOW, 3/4 UNF

1шт.

3

K691788

SPARE PART

TENSION BUSH - ram case

1шт.

4

K772216

SLEEVE

1шт.

5

K24683

O-RING,2.484" ID x 2.762" OD x 0.139"

"O" RING, 2-1/2 in. int. dia.

1шт.

6

K691234

SEAL,66.04mm ID x 70.1mm OD x 1.57mm Thk

LEATHER RING, 2-1/2 in. int. dia.

1шт.

7

K24666

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

"O" RING, 2 in. int. dia.

1шт.

8

K24669

RING

LEATHER RING, 2 in. int. dia.

1шт.

9

K623525

RING,50.42mm ID x 61.34mm OD x 5.46mm Thk

SEALING RING, 2 in. int. dia.

1шт.

10

K691843

SCRAPER

SEAL, 2 in. int. dia.

1шт.

11

K767003

ROD

RAM ROD, 41 in., LF12 (1212, 1210)

1шт.

11

K766831

ROD

RAM ROD, 36-3/4 in., LF9 (996-5, 990)

1шт.

11

K757212

ROD

RAM ROD, 31 in., LF8 (885)

1шт.

12

K12300

RING, SNAP

CIRCLIP, 2 in. ext.

2шт.

13

K771253

RAWPLUG

PIVOT PIN - ram case

2шт.

14

K771249

PIN

PIVOT PIN - ram rod

2шт.

15

K691509

PIN

LINCH PIN AND RING

4шт.

16

K769467

HOSE

PIPE, 3/4 UNF x 20 in., LF12 (1212, 1210), LF9 (996-5, 990)

2шт.

16

K772741

HOSE

PIPE, 3/4 UNF x 17 in., LF8 (885)

2шт.

17

K690908

FITTING

UNION, 1/2 BSP-3/4 UNF

2шт.

18

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING, 1/2 BSP

2шт.

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING, 3/4 in. int. dia.

4шт.

19

K691847

FITTING

UNION, 1/2 BSP-3/4 UNF

2шт.

K945364

PIPE

EXTENSION, 3/4 UNF x 3 in., LF9 (996-5, 990), 996

2шт.

20

K774027

CONDUIT

STEEL PIPE, right-hand, LF12 (1212, 1210)

1шт.

20

K772779

CONDUIT

STEEL PIPE, right- and left-hand, LF9 (996-5, 990)

2шт.

20

K772744

CONDUIT

STEEL PIPE, right- and left-hand, LF8 (885)

2шт.

21

K622160

FITTING

TEE-PIECE, 3/4 UNF

1шт.

22

K774025

CONDUIT

STEEL PIPE, left-hand, LF12 (1212, 1210)

1шт.

23

K763788

HOSE

PIPE, 3/4 UNF x 20 in., centre, LF12 (1212, 1210)

1шт.

23

K773130

CONDUIT

STEEL PIPE, centre, LF9 (996-5, 990)

1шт.

23

K773131

CONDUIT

STEEL PIPE, centre, LF8 (885)

1шт.

24

K691891

FITTING

ELBOW, 3/4 UNF, LF9 (996-5, 990), LF8 (885)

1шт.

25

K759669

HOSE

PIPE, 3/4 UNF x 52-1/2 in., LF12 (1212, 1210)

1шт.

25

K763621

PIPE

3/4 UNF x 29-1/2 in., LF9 (996-5, 990), LF8 (885)

1шт.

26

K690907

FITTING

UNION, 3/4 UNF, pipe to tractor valve

1шт.

K623591

O-RING

"O" RING, 5/8 in. int. dia., pipe to tractor valve

1шт.

27

K691502

CLIP

- pipe to gearbox cover

2шт.
