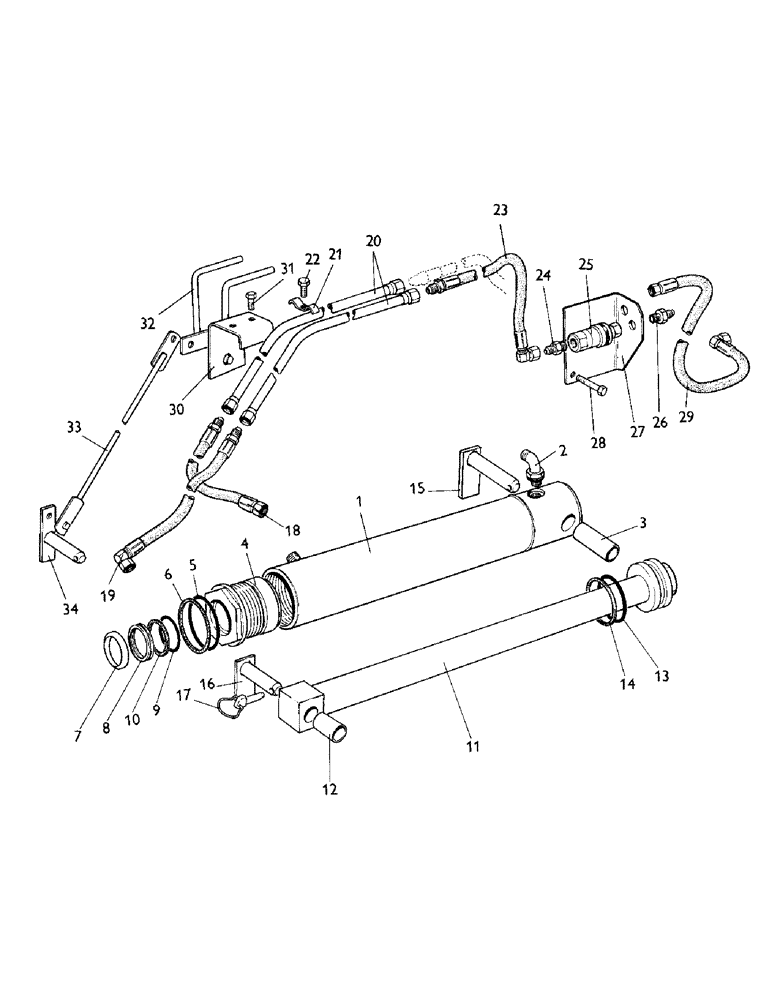

Запчасти Case IH LF-SERIES (10) - BUCKET DUMP MECHANISM, HYDRAULIC, LF12H MODEL 1212, 1210, LF9H MODEL 996. 995, 990

K772284

CYLINDER ASSY.

RAM CYLINDER ASSEMBLY, 22 x 2-3/4 x 13-3/8 in. (Double-acting)

1шт.

1

K772285

SPARE PART

RAM CYLINDER CASE, 772284

1шт.

2

K622114

FITTING

ELBOW, 3/4 UNF, 772284

1шт.

3

K691788

SPARE PART

TENSION BUSH - ram case, 772284

1шт.

4

K772289

SLEEVE

772284

1шт.

5

K24683

O-RING,2.484" ID x 2.762" OD x 0.139"

"O" RING, 2-1/2 in. int. dia., 772284

1шт.

6

K691234

SEAL,66.04mm ID x 70.1mm OD x 1.57mm Thk

LEATHER RING, 2-1/2 in. int. dia., 772284

1шт.

7

K691846

RING

SCRAPER SEAL, 1-3/4 in. int. dia., 772284

1шт.

8

K691285

SEAL

ING RING, 1-3/4 in. int. dia., 772284

1шт.

9

K691287

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

"O" RING, 1-3/4 in. int. dia., 772284

1шт.

10

K691286

RING

LEATHER RING, 1-3/4 in. int. dia., 772284

1шт.

11

K772290

ROD

PISTON AND ROD, 772284

1шт.

K16351

O-RING,3.53mm Thk x 24.99mm ID

"O" RING, 1 in. int. dia. - piston rod, 772284

1шт.

12

K691296

BUSHING

TENSION BUSH - piston, 772284

1шт.

13

K691506

O-RING

"O" RING, 2-3/8 in. int. dia., 772284

1шт.

14

K691504

RING

LEATHER RING, 2-3/8 in. int. dia., 772284

2шт.

K690950

PIN

SPRING PIN, 6.5 x 60 MM - piston, 772284

1шт.

15

K772851

PIN

PIVOT PIN - ram case

1шт.

16

K771249

PIN

PIVOT PIN - ram rod

1шт.

17

K691509

PIN

LINCH PIN AND RING

2шт.

18

K763069

HOSE

PIPE, 3/4 UNF x 26 in.

1шт.

19

K772854

HOSE

PIPE, 3/4 UNF x 36 in., with boom extension

1шт.

K766724

PIPE

3/4 UNF x 23 in., with boom extension

2шт.

20

K772543

CONDUIT

STEEL PIPE, with boom extension, LF12H (1212, 1210)

2шт.

20

K772545

CONDUIT

STEEL PIPE, LF9H (996-5, 990)

2шт.

20

K772547

CONDUIT

STEEL PIPE, LF8H (885)

2шт.

21

K772565

CLIP

, Serial Range: pipes-boom

6шт.

K772566

RUBBER

PACKING, Serial Range: pipes-boom

6шт.

22

K602733

SCREW

SETSCREW, 1/4 UNC x 5/8 in., Serial Range: pipes-boom

3шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in., Serial Range: pipes-boom

3шт.

K607043

NUT

1/4 UNC, Serial Range: pipes-boom

1шт.

23

K773247

PIPE

3/4 UNF x 26 in., LF12H (1212, 1210)

2шт.

23

K773156

HOSE

PIPE, 3/4 UNF x 21-1/2 in., LF9H (996-5, 990), LF8H (885)

2шт.

24

K690908

FITTING

UNION, 1/2 BSP-3/4 UNF

2шт.

25

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING

2шт.

26

K691847

FITTING

UNION, 1/2 BSP-3/4 UNF

2шт.

K691882

SHIM

WASHER, 7/8 in.

1шт.

27

K772975

COUPLING, BREAK AWAY

SUPPORT BRACKET - couplings, ULF9/12, UFL9/9, ULF9/8, LF12H (1212, 1210)

1шт.

27

K772982

FITTING

SUPPORT BRACKET - couplings, ULF9/12, ULF9/9, ULF9/8, LF9H (996-5, 990)

1шт.

27

K773191

FITTING

SUPPORT BRACKET - couplings, ULF9/12, ULF9/9, ULF9/8, LF8H (885)

1шт.

28

K691818

SPARE PART

BOLT, 3/8 UNC x 4-3/4 in., bracket to loader, ULF9/12, ULF9/9, ULF9/8

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., bracket to loader, ULF9/12, ULF9/9, ULF9/8

2шт.

280136

NUT,3/8"-16, G8

Bracket to loader, ULF9/12, ULF9/9, ULF9/8 3/8"-16, G8

2шт.

29

K759669

HOSE

PIPE, 3/4 UNF x 52-1/2 in., ULF9/12, ULF9/9, ULF9/8

2шт.

K691502

CLIP

- pipes to gearbox cover, ULF9/12, ULF9/9, ULF9/8

2шт.

K622114

FITTING

ELBOW, 3/4 UNF, ULF9/12, ULF9/9, ULF9/8

2шт.

K945364

PIPE

EXTENSION, 3/4 UNF x 3 in., LF9H (996-5, 990), 996

2шт.

30

K773560

BOOM

FIXED POINTER, bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H

1шт.

31

K602736

SCREW

SETSCREW, 1/4 UNC x 7/8 in., bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H

2шт.

32

K773667

INDICATOR

MOVING POINTER, bucket level indicator, ULF50/12, ULF50/9H, ULF50/8H

1шт.

K626686

WASHER

1/2 in., bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H

2шт.

K26228

PIN

SPLIT PIN, 1/8 x 7/8 in., bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H

2шт.

33a

K773673

BAR

ROD, 56-1/8 in., bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H, LF12H (1212, 1210)

1шт.

33b

K773557

BAR

ROD, 50 in., bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H, LF9H (996-5, 990)

1шт.

33c

K773675

BAR

ROD, 45-3/4 in., bucket level indicator, ULF50/12H, ULF50/9H, ULF8H, LF8H (885)

1шт.

34

K773565

BUCKET

PIVOT PIN - bucket, bucket level indicator, ULF50/12H, ULF50/9H, ULF50/8H

1шт.
